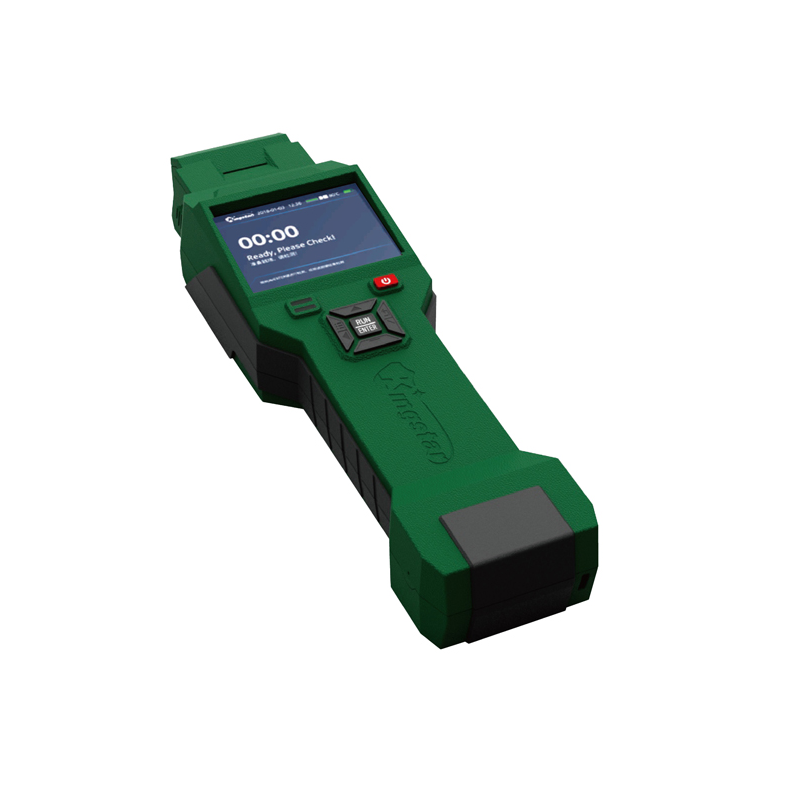

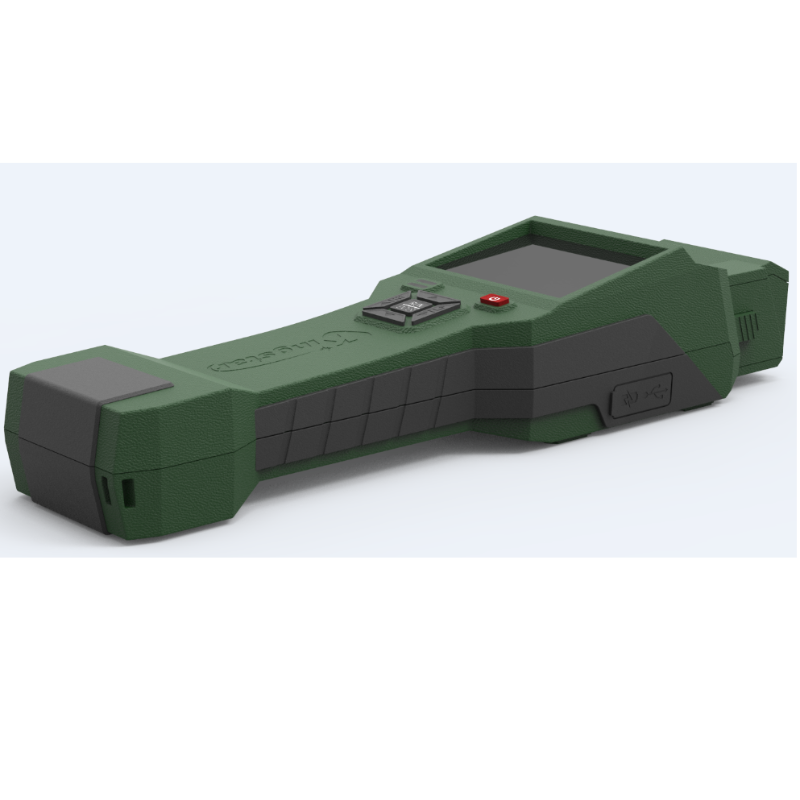

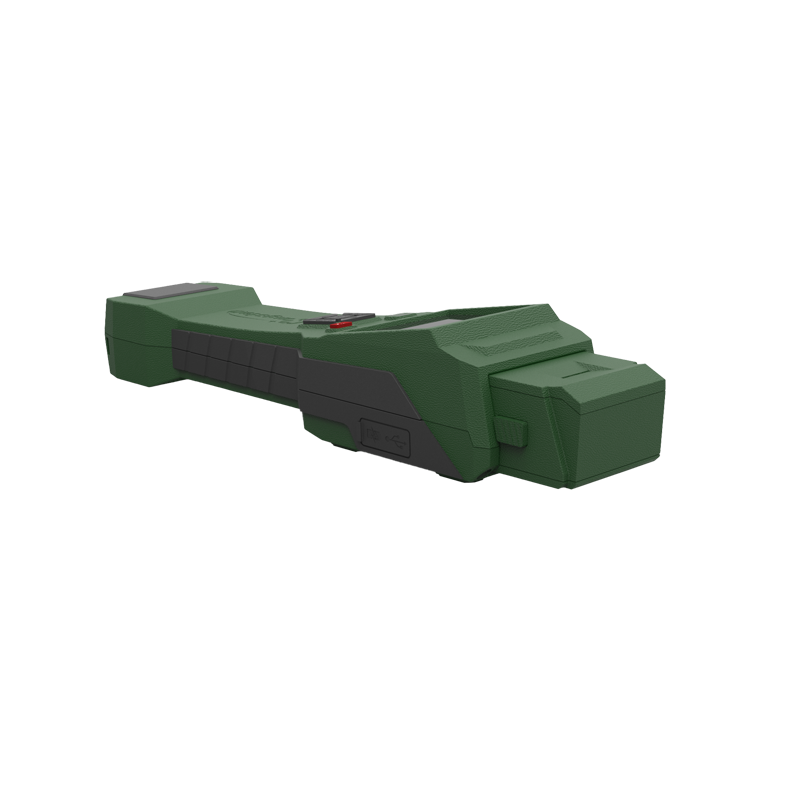

STAR-ES I Portable Trace Explosives Detector

Software function:

a) The instrument supports viewing information such as working status;

b) The instrument can display the detection result information in real time when an alarm signal is issued;

c) The instrument has the functions of self-test and sensor failure alarm;

d) The instrument has the function of automatically switching the detection mode;

e) The instrument has the function of automatically detecting the insertion and removal of test strips to perform corresponding actions;

f) The instrument has the function of automatic cleaning;

g) The instrument has operating language, power-on password, system time, alarm volume, screen brightness, and detection sensitivity that can be modified by authorized users.

Technical Parameters:

1. Detection mode: heating mode, direct suction mode

2. Detection types: The instrument can detect TNT trinitrotoluene, DNT dinitrotoluene, RDX black powder, BP black powder, TETRYL Tetrier, C4 explosive, AN ammonium nitrate, PENT Tai'an, Octojin, Dozens of explosives such as nitroglycerin and DINA.

3. Detection response time: ≤2s

4. Preheating time: ≤1min (heating mode), ≤4s (direct suction mode)

5. Alarm mode: sound, light, word alarm prompt

6. Cleaning time: ≤10s

7. Endurance time: continuous working time of a single battery ≥ 8h, with 2 batteries as standard

8. Sensing device: Sampling and analysis of 10ng TNT sample, the normal working times of the sensing device of the equipment is ≥300 times.

9. The instrument should have the functions of real-time storage, retrieval and export of data; the storage capacity is ≥50,000.

10. Display screen: 3.5-inch LCD color liquid crystal display with a resolution of 320*240dpi.

11. Machine size:

Instrument host: ≤296mm×88mm×65mm.

Instrument heater: ≤64mm×73mm×43mm.

Instrument connection heater: ≤326mm×88mm×65mm.

12. Weight of the whole machine: ≤1.2kg (including battery and heating head)
