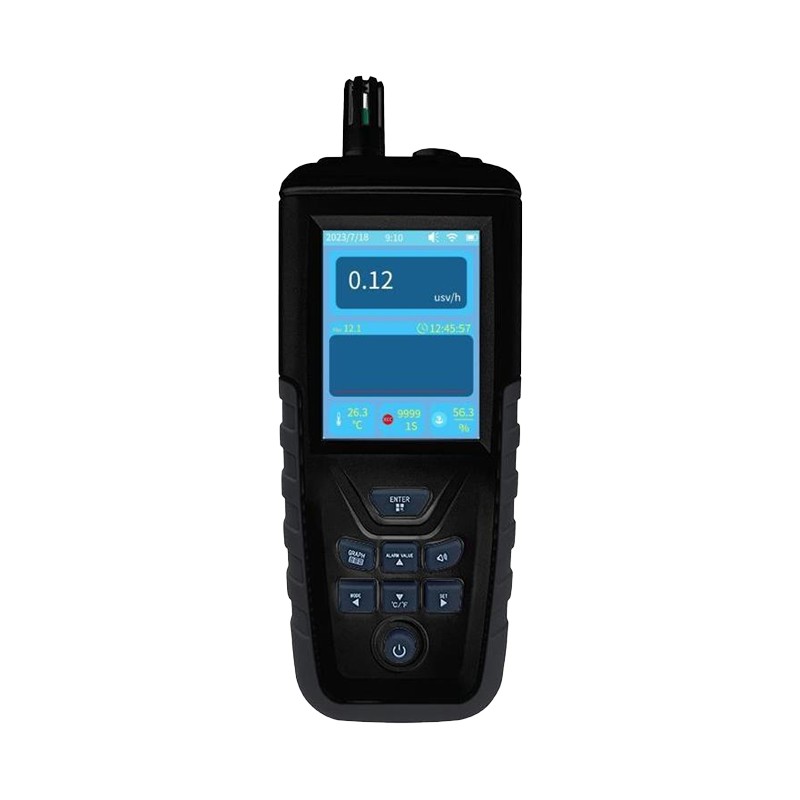

VK-8550: High-Precision Radiation Detector for Real-time & Remote Monitoring

The VK-8550 is a high-performance nuclear radiation detector that integrates an advanced imported mica-end-window Geiger-Müller (GM) tube detector. It is capable of efficiently detecting various types of radiation, including alpha rays (α), hard beta rays (β), gamma rays (γ), and X-rays. This device is suitable for professional use in settings such as metal recycling companies, mines, ports, docks, airport import/export checkpoints, hardware factories, ceramic factories, hospitals, research institutions, laboratories, and pharmaceutical regulatory agencies, as well as for home use to monitor potential environmental pollution in everyday items like food, water, and cosmetics.
Remote Monitoring Function The VK-8550 supports remote monitoring and operation via WiFi connection and the Tuya app, allowing users to access radiation detection data from anywhere, ensuring environmental safety.

Nuclear Radiation Detector VK-8550

Overview

Remote Monitoring Function The VK-8550 supports remote monitoring and operation via WiFi connection and the Tuya app, allowing users to access radiation detection data from anywhere, ensuring environmental safety.

Application Areas

· Professional Use: Metal recycling companies, mines, ports, docks, airport import/export checkpoints, hardware factories, ceramic factories, hospitals, research institutions, laboratories, and pharmaceutical regulatory agencies.

· Home Use: Monitoring environmental pollution in food, water, cosmetics, etc.

Features

· High-Precision Measurement: Supports detection of multiple types of radiation.

· Remote Monitoring Function: Facilitates remote management.

· Large Data Storage: Enables data analysis.

· Portable Design: Convenient for on-site operations.

· Long Battery Life: Suitable for extended use.

Technical Specifications

Model	VK-8550
Sensor Type	Imported Mica-End-Window Geiger-Müller (GM) Tube Detector
Detectable Types	Alpha Rays (α), Hard Beta Rays (β), Gamma Rays (γ), X-Rays
Energy Range	20 keV ~ 4.0 MeV ± 30% (137Cs-)
Sensitivity	18 cps/mR/hr (Co-60)
Resolution	0.01 μSv/h
Real-Time Measurement Range	<br>μSv/h: 0 ~ 10,000<br>CPS: 0 ~ 10,000<br>Urem: 0 ~ 1,000,000
Real-Time Value Accuracy	8%
Average Value Accuracy	3%
Temperature Measurement Range	-10°C ~ 60°C
Temperature Accuracy	±2°C
Temperature Resolution	0.01°C
Humidity Measurement Range	0% ~ 100%
Humidity Accuracy	±3%
Humidity Resolution	0.01%
Power Supply	3.7V / 2,200 mAh Lithium Battery (18650 Removable)
Screen Size	3.2-inch TFT Color Screen
Continuous Working Time	>8 Hours
Charging Time	2 ~ 3 Hours
Number of Data Records	1,000 Sets
Data Documentation	View on Device or on Computer (PDF Document)
Net Weight	285 g
Product Dimensions	222 x 80 x 46 mm
Packaging Dimensions	270 x 220 x 80 mm
