The first DSP metal detector with Intellectual Property Rights in China, suitable for metal contaminants detection in various industries like: aquatic products, meat & poultry, salted roducts, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys, etc.

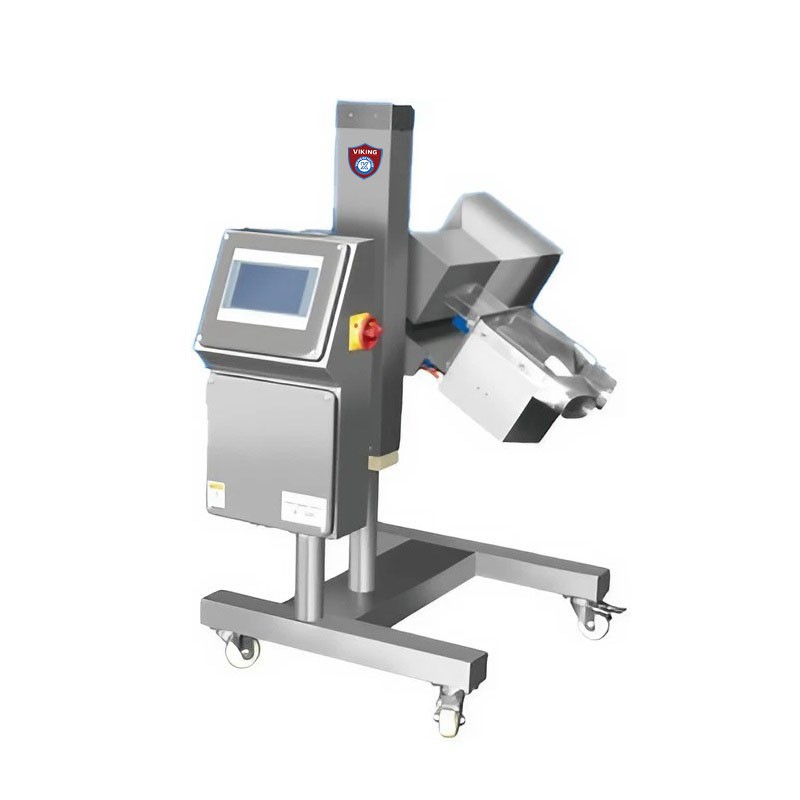

Metal Detector IMD Series
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferous metals (copper, Aluminum etc.) and stainless steel.
●Special phase adjusting technology
●High sensitivity with stable perf rmance
●Auto balance function
●Touch screen
●USB Port
●Dual-frequency
●Customized re ecter system
●Different surface treatment
●Multi languages
●Customization
●Large memory capacity
●Auto-learning product character
●Finish auto-learning process very soon
.
High sensitivity and stability detection of ferrous metal (Fe), non-ferrous metals (Copper, Aluminum) and stainless steel, this type of machine is suitable to be installed after some pharmaceutical equipment like the tablet press machine, the capsule filling machine and the sieve machine.
Model | IMD-M80 | IMD-M100 | IMD-M150 | |
Detection Width | 72mm | 87mm | 137mm | |
Detection Height | 17mm | 15mm | 25mm | |
Sensitivity | Fe | Φ0.3-0 5mm | ||
SUS304 | Φ0.6-0.8mm | |||
Display Mode | TFT touch screen | |||
Operation Mode | Touch input | |||
Product Storage Quantity | 100kinds | |||
Channel Material | Food grade plexiglass | |||
Rejecter Mode | Automatic rejection | |||
Power Supply | AC220v (optional) | |||
Pressure Requirement | ≥0.5Mpa | |||
Main Material | SUS304(product contact parts: SUS316) | |||
Note:
1.The technical parameter above namely is the result of sensitivity by detecting only the test sample inside the channel. The sensitivity would be affected according to the products being detected and working condition.
2. Requirements for different sizes by customers can be fulfilled.
