VT-605 Portable C2D1 Anti-Drone System - Integrated Detection & Interference

The VT-605 is a portable C2D1 (Detect and Disable) anti-drone system that integrates drone detection and interference capabilities into a single unit, featuring a design without external components for easy single-operator use. The device is capable of omnidirectional detection at 3 kilometers and directional interference at 2 kilometers. It detects and identifies civilian drones within its airspace and uses SDR (Software Defined Radio) technology to suppress them, forcing the drones to hover safely, return home, or land. Additionally, the system can counter drones equipped with 5G modules.

EMAIL

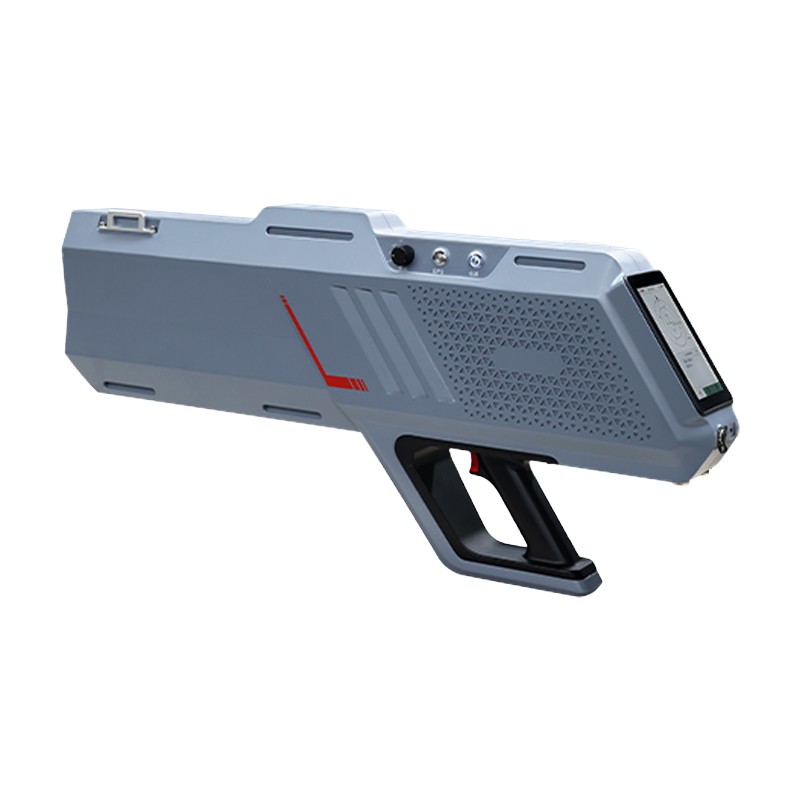

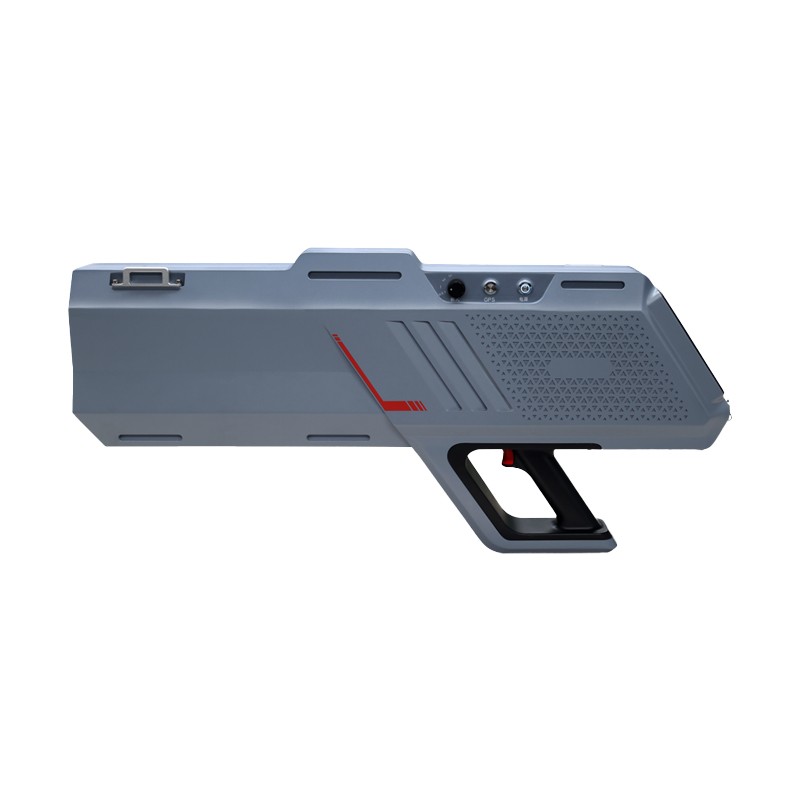

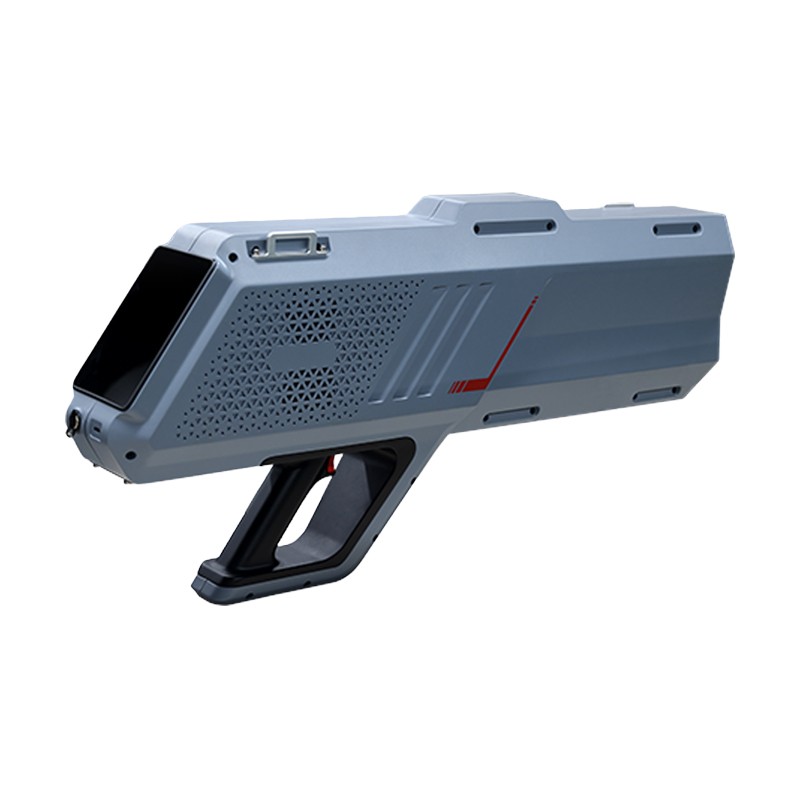

VT-605 Portable C2D1 Anti-Drone System

Product Overview

The VT-605 is a portable C2D1 (Detect and Disable) anti-drone system that integrates drone detection and interference capabilities into a single unit, featuring a design without external components for easy single-operator use. The device is capable of omnidirectional detection at 3 kilometers and directional interference at 2 kilometers. It detects and identifies civilian drones within its airspace and uses SDR (Software Defined Radio) technology to suppress them, forcing the drones to hover safely, return home, or land. Additionally, the system can counter drones equipped with 5G modules.

Main Application Scenarios

· Military controlled areas, urban counter-terrorism, public security, judiciary, airports, ports, prisons, petrochemical facilities, power plants, nuclear power plants, border defense, and other no-fly zones for critical infrastructure.

· Suitable for major event security, preventing leaks at law enforcement sites, and border smuggling activities.

Key Features

· C2D1 Design: Integrates drone detection and interference capabilities into a single unit, designed ergonomically without external components for easy single-operator portability.

· Architecture Design: Based on SDR technology, detection and interference are more stable, allowing customizable configuration of interference bands, bandwidth, and power levels.

· Long Detection Range: Capable of 3-kilometer omnidirectional detection.

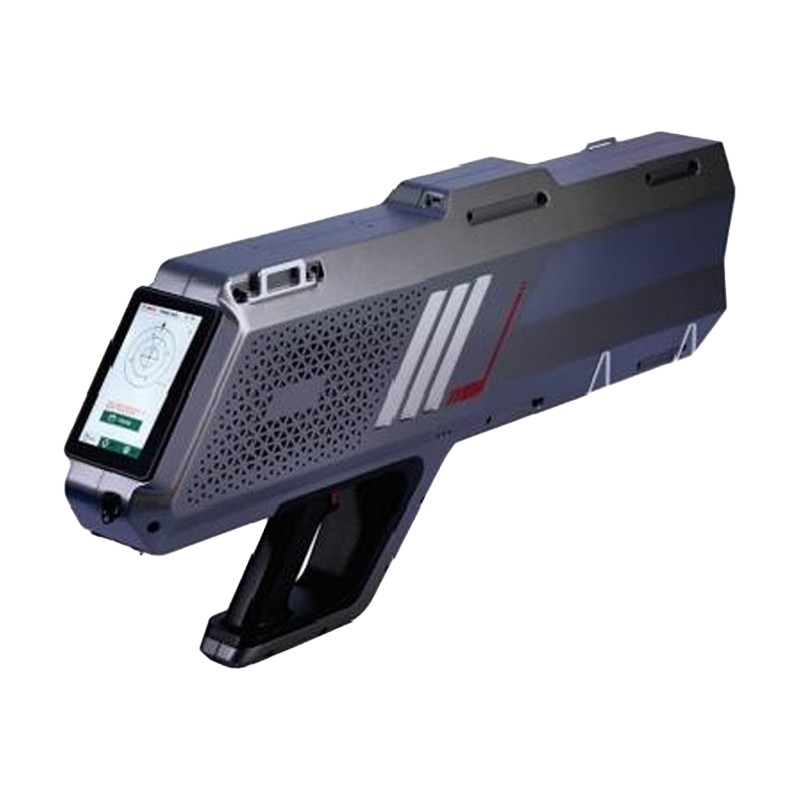

· Human-Machine Interface Design: Equipped with a 5-inch display for easy human-machine interaction, showing real-time target status information.

· Long Countermeasure Range: 2-kilometer directional countermeasures.

· Long Operating Time: Equipped with a large-capacity battery supporting fast charging, enabling long outdoor operation times.

 Technical Specifications

Detection Unit

Working Mode

Radio Spectrum Sensing Detection

Detection Frequency Band

2.4GHz, 5.8GHz, 800MHz (optional), 1.4GHz (optional)

Signal Types

Drone Telemetry Signals, Drone Remote Control Signals, WIFI Drone Signals

Detection Distance

≥3km (open field environment), 0.5km-1km (suburban environment)

Detection Antenna

Omnidirectional + Directional Antenna

Response Time

≤4s

False Alarm Rate

≤5%

Missed Report Rate

5%

Alarm Method

LED Display, Sound Alarm

Directional Accuracy

10° (open field environment)

Interference Unit

Working Mode

Wireless Telecommunication Interference

Interference Mechanism

SDR_Software Radio Technology

Interference Frequency Band

900MHz, 1.4GHz, 1.5GHz, 2.4GHz, z Frequency Band (optional), 5.8GHz, 5G Mobile Communication Frequency Band (optional)

Interference Distance

≥2km (open field environment), Interference-to-Communication Ratio Not Less Than 10:1

Maximum Emission Power

≤45W

Emission Power Regulation

Supported

Interference Antenna Type

Directional Antenna

Emission Angle of Interference Antenna

≥30°

Interference Response Time

<4s

Overall Machine

Endurance Time

≥40min

Standby Time

≥8h

Battery Type

Lithium-ion Polymer Battery

Overall Power Consumption

≤150W

Screen Display

5-inch Display Showing: Self-test Status, Drone Model, Interference Frequency Band, Date and Time, Battery Level, Interference Duration, etc.

Overall Dimensions

700mm * 322mm * 100mm

Overall Weight

≤4.5kg

Protection Grade

P54

Operating Temperature

-30°C to 45°C

Storage Temperature

-40°C to 85°C
