WMD100 Intelligent Walk-Through Metal Detection System - High-Precision Metal Classification Detection, Advanced Weapon Detection with Real-Time Monitoring

The Intelligent Walk-Through Metal Detection System (IMDS) is a cutting-edge solution designed for rapid and accurate screening of individuals, even those carrying backpacks, purses, and bags, for the detection of various metal threats. This includes regulated knives, firearms, containers for flammable and explosive substances, pipes, and other prohibited metal items.
The IMDS provides high-accuracy weapon detection while minimizing false alarms, making it ideal for securing public spaces, events, and facilities. Its modular design and robust feature set ensure adaptability to a wide range of security needs.

EMAIL

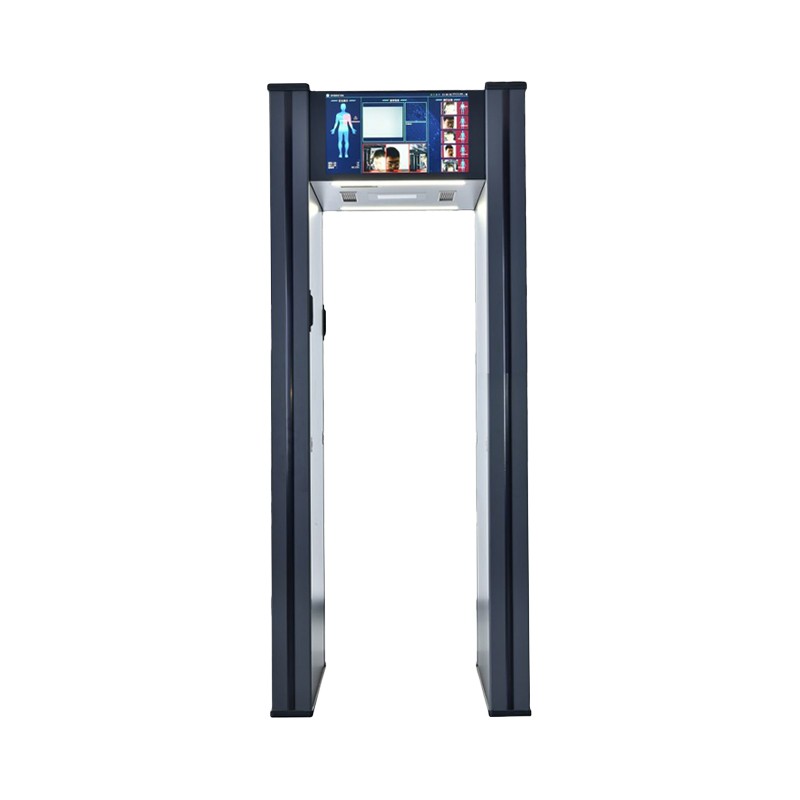

Intelligent Walk-Through Metal Detection System WMD100

Overview:

The Intelligent Walk-Through Metal Detection System (IMDS) is a cutting-edge solution designed for rapid and accurate screening of individuals, even those carrying backpacks, purses, and bags, for the detection of various metal threats. This includes regulated knives, firearms, containers for flammable and explosive substances, pipes, and other prohibited metal items.

The IMDS provides high-accuracy weapon detection while minimizing false alarms, making it ideal for securing public spaces, events, and facilities. Its modular design and robust feature set ensure adaptability to a wide range of security needs.

Key Features:

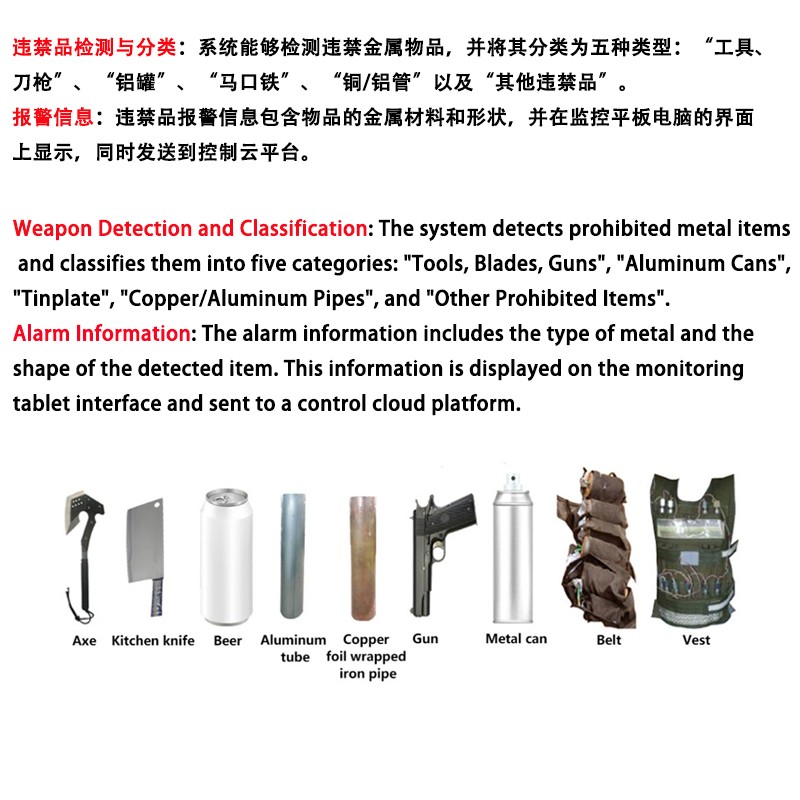

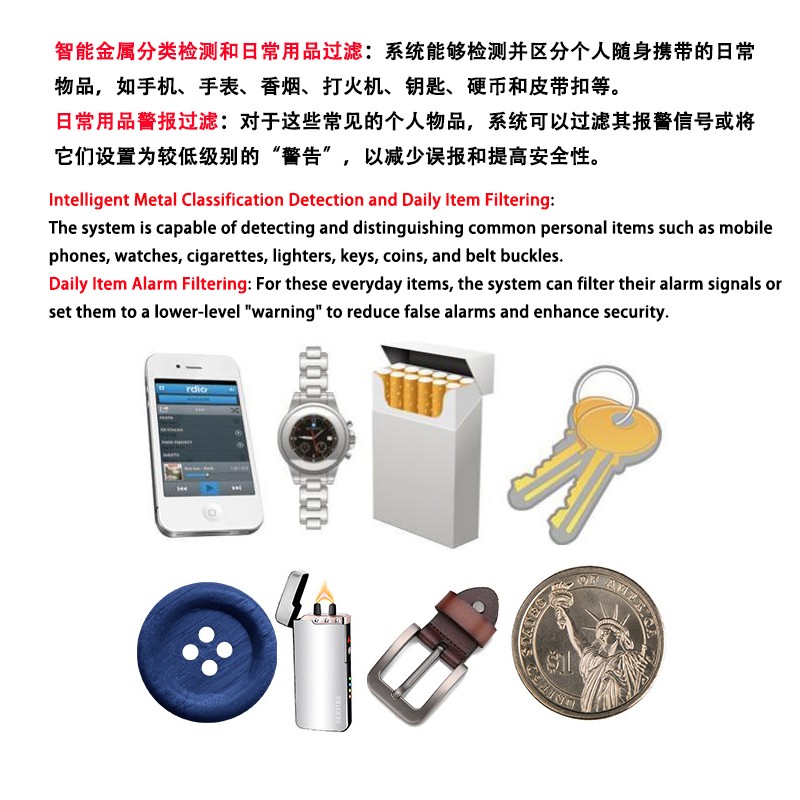

· Patented Metal Classification Detection Technology: The system uses advanced algorithms to distinguish between contraband and everyday personal items like mobile phones, watches, lighters, keys, and coins. It filters out non-threatening items to reduce false alarms.

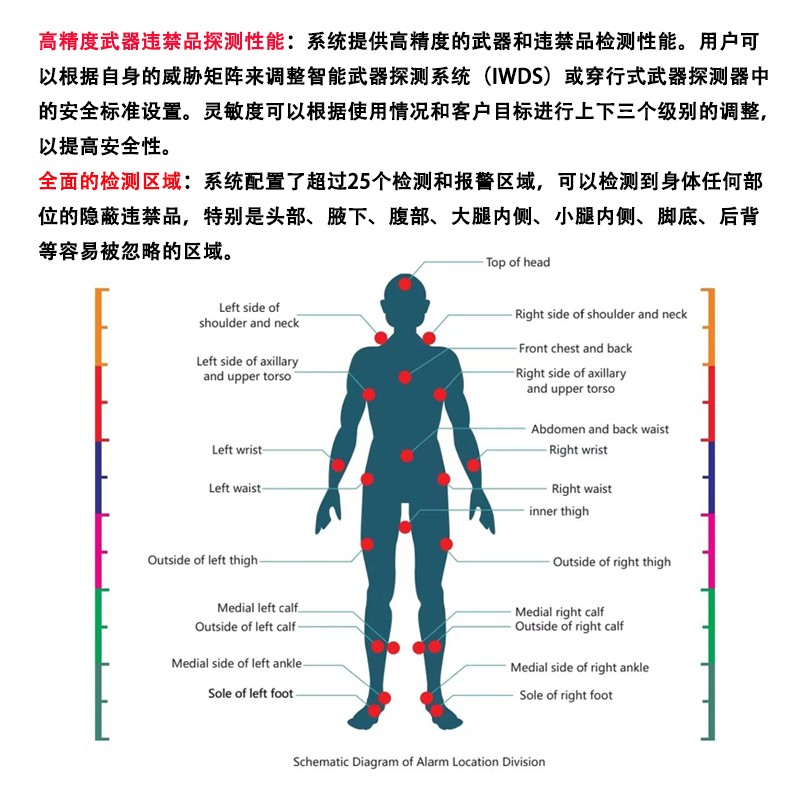

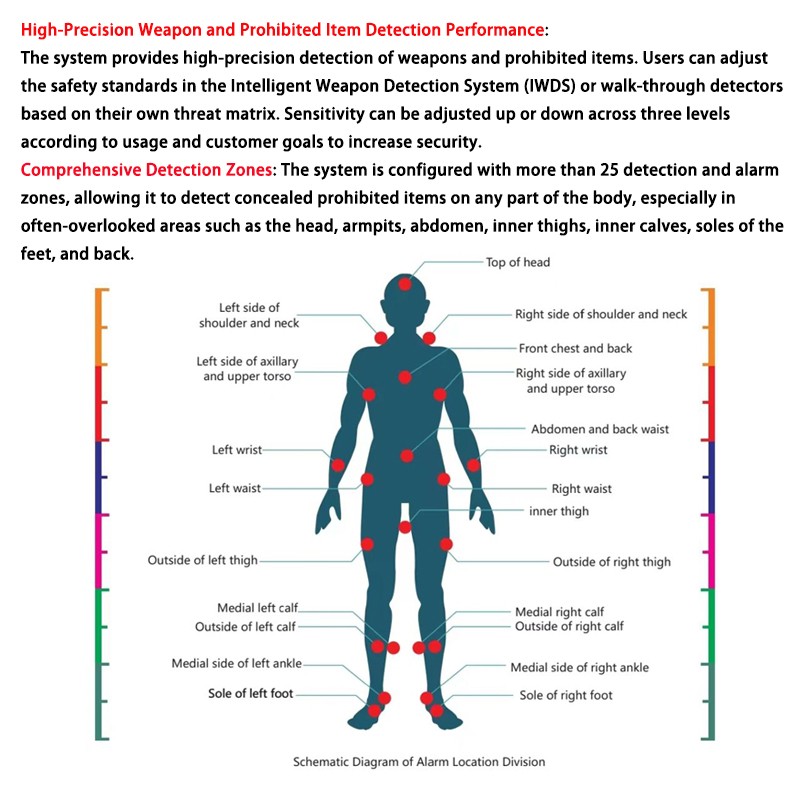

· Multi-Zone Alarm Mode: Supports simultaneous display of multiple alarm zones, enabling the detection of multiple concealed items at once.

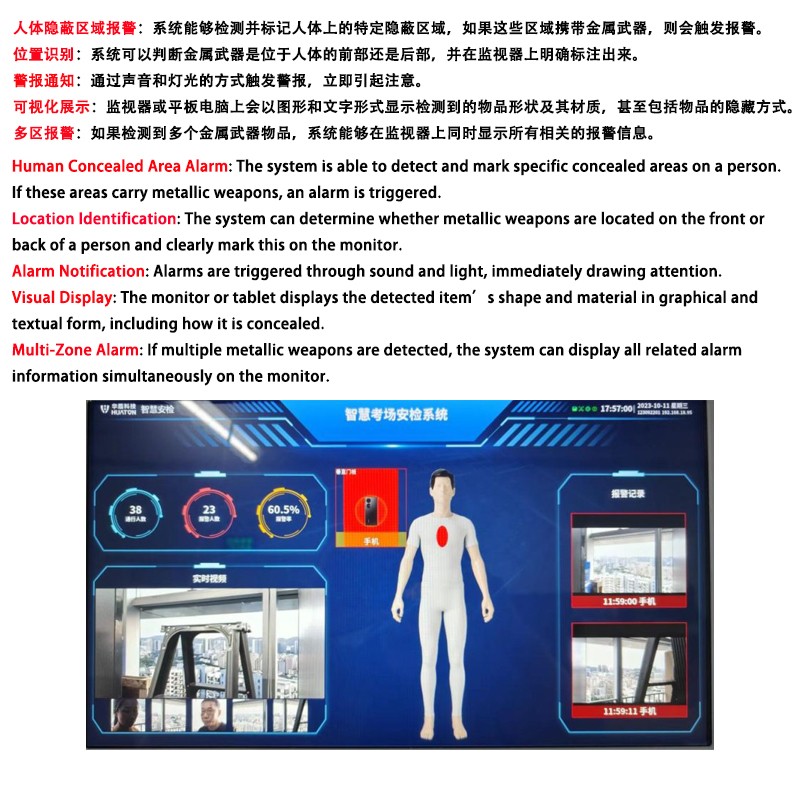

· Real-Time Monitoring: An integrated tablet monitor displays real-time video, alarm information, and captured photos, including details about the location, date/time, contraband material, and shape.

· Embedded AI Edge-Computing Host: Collects and stores alarm data, runs AI algorithms, and connects to the monitor tablet and cloud platform.

· Alert Notifications: Sends real-time alerts to security centers, tablets, mobile apps, and browsers. Alerts can be escalated following confirmation by security personnel.

· Integration Capabilities: Can integrate with infrared temperature measurement cameras, HD surveillance cameras, face recognition terminals, and access control systems.

· Cloud Data Platform: Provides real-time alerts, incident reporting, analytics, device management, and other features to enhance operational efficiency.

 Specifications:

TYPE

CONTENT

SPECIFICATION

Metal Detection System

Allowed Passing Speed

1-2 person(s)/second

Detection Rate

Higher than 98%

False Alarm Rate

Lower than 5%

Pass Count

Support

Sensitivity Set

Support

Working Mode Set

Support

Self-Diagnosis

Support

POST (Power-on-Self-Test)

Support

Setting LCD

7.0 inch LCD with Touch Panel

Outer Frame

2200 mm(H) x 850 mm(W) x 800 mm(D)

Inner Frame

2000 mm(H) x 700 mm(W) x 600 mm(D)

Weight

120 kg

Power Supply Voltage

110-220V, 50/60HZ

Edge-computing Host

Processor

4 cores ARM Cortex-A7; 2.0 TOPS NPU Processor

RAM

2G

Flash

16G

O/S

Linux

CAM

1/2 HD Cam, 1920*1080 pixels,

FOV Diagonal:>90°,Horizon>75°,Vertical>60°

Monitor Tablet LCD

18.5 inch 1920*1080

Interface

1 Ethernet RJ45; 2 USB; 1 RS232;1 LVDS LCD Interface ; 1/2 CAM Interface

Communication

Ethernet 100M; 4G (Optional); WiFi (Optional)

AI algorithm

Face Capture and Recognition;

Face Database Comparison;

3D Depth Analytics

Capture Photo

Distance between two eyes is higher than 30 pixels; Horizontal rotation angle of the face should be within ±30°; Pitch angle within ±20°; Tilt angle within ±30°
