VK-002: High-Sensitivity Radiation Detector for Real-time Monitoring

VK-002: High-Sensitivity Radiation Detector for Real-time Monitoring

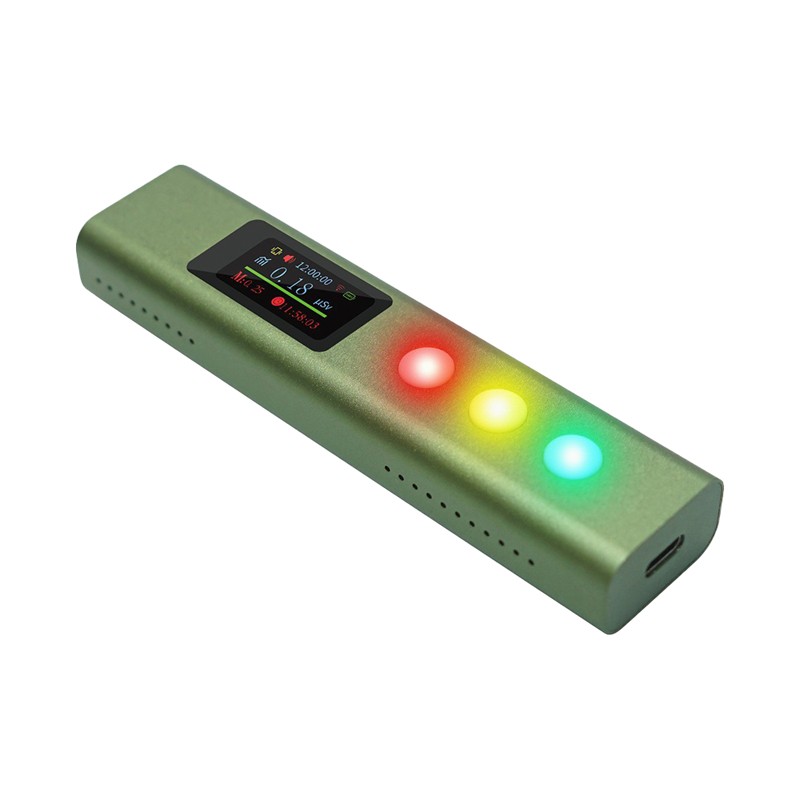

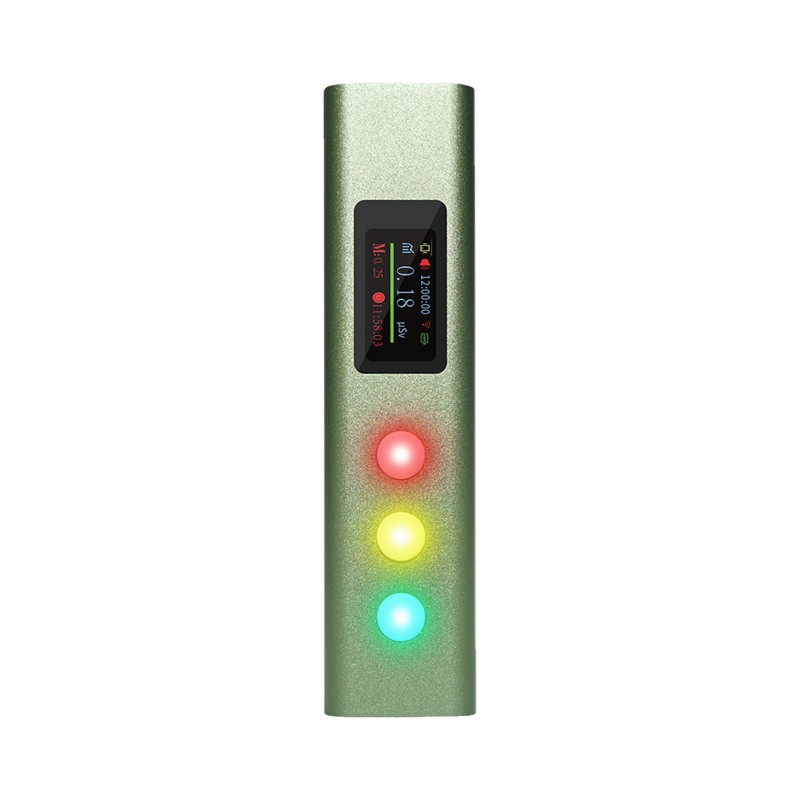

The VK-002 Nuclear Radiation Detector is a portable, high-performance radiation monitoring device that utilizes an advanced energy-compensated Geiger-Müller (GM) tube as its core detection element. This detector can rapidly and accurately measure hard beta rays (β), gamma rays (γ), and X-rays in the environment, displaying real-time data on a 3.2-inch TFT color screen. The VK-002 supports remote monitoring and operation via WiFi connection and the Tuya app, making it suitable for professionals and general users who need to monitor radiation levels in various environments.
The VK-002 Nuclear Radiation Detector, with its superior performance and broad applicability, is an ideal choice for radiation monitoring. Both professionals and general users can rely on the VK-002 to accurately monitor radiation environments, ensuring safe and healthy living and working conditions.

Product Name: VK-002 Nuclear Radiation Detector

Product Introduction

The VK-002 Nuclear Radiation Detector, with its superior performance and broad applicability, is an ideal choice for radiation monitoring. Both professionals and general users can rely on the VK-002 to accurately monitor radiation environments, ensuring safe and healthy living and working conditions.

Application Fields

The VK-002 Nuclear Radiation Detector is suitable for a variety of applications, including but not limited to:

· Metal Recycling Companies: For detecting radioactive contamination in scrap metal.

· Mines: To monitor radiation pollution during ore extraction.

· Ports and Docks: To check for radioactive overexposure in imported and exported goods.

· Airports: For radiological safety screening of passenger luggage and cargo.

· Hardware Factories and Ceramic Factories: To monitor radioactive contamination in raw materials and finished products.

· Hospitals and Research Institutions: For medical research, treatment, and protective measures.

· Laboratories: For conducting radiological experiments and research.

· Pharmaceutical Regulatory Agencies: To supervise the radiological safety of pharmaceutical production and distribution processes.

· Home Environment: For detecting environmental pollution in food, water, cosmetics, etc.

Features and Advantages

· Remote Monitoring: Supports WiFi connection and Tuya app remote monitoring and operation, enabling easy management of monitoring data from anywhere.

· High Sensitivity: Suitable for detecting small changes in radiation levels, with high detection capability for most common radionuclides.

· Intuitive Display: A 3.2-inch TFT color screen provides clear and readable data display.

· Portable and Lightweight: Lightweight design makes it easy to carry, suitable for on-site monitoring.

· Large Data Storage: Can record up to 50,000 sets of data, viewable on the device or on a computer in PDF format.

· Versatile Applications: Widely applicable in metal recycling, mines, ports, airports, hardware factories, ceramic factories, hospitals, research institutions, laboratories, and pharmaceutical regulatory agencies.

Technical Specifications

Model	VK-002
Sensor Type	Energy-Compensated GM Tube
Detectable Types	Hard Beta Rays (β), Gamma Rays (γ), X-Rays
Energy Range	20 keV ~ 3.0 MeV ± 30% (137Cs-)
Sensitivity	80 cpm/μSv/(Co-60)
Resolution	0.01 μSv/h
Real-Time Measurement Range	0-10 mSv/h
Real-Time Value Accuracy	10%
Average Value Accuracy	3%
Temperature Measurement Range	-10~60°C
Temperature Accuracy	±2°C
Temperature Resolution	0.01°C
Humidity Measurement Range	0~100%
Humidity Accuracy	±3%
Humidity Resolution	0.01%
Power Supply	3.7V/500 mAh Lithium Battery
Screen Size	3.2-inch TFT Color Screen
Continuous Working Time	8 Hours
Charging Time	2-3 Hours
Number of Data Records	50,000 Sets
Data Documentation	View on Device or on Computer (PDF Document)
Net Weight	59 g
Product Dimensions	110 × 27 × 16 mm
Packaging Dimensions	120 × 65 × 25 mm
