Double-Frequency Metallic Mine Detector

Double-Frequency Metallic Mine Detector is designed for personnel mine detecting and as well the

corollary equipment ofvehicular military mine detectors to improve its performance. It overcomes the

shortcomings of traditional single-frequency metallic detector that can hardly operate in the electric

andmagnetic conditions such as seawater and magnetic soil.Providing ability of high sensitivity and

resolution, the Double-Frequency Metallic Detector can achieve accurately staticlocalization. lts ability

of operation in all kinds of climate and soilconditions such as high-fever, severe cold and seawater,

fresh water, laterite, clay soil, magnetic soil and beach soil meet the requirement of army for fullterrain.

At the same time, the intelligentized design is incorporated, so that it can be performed more conveniently.

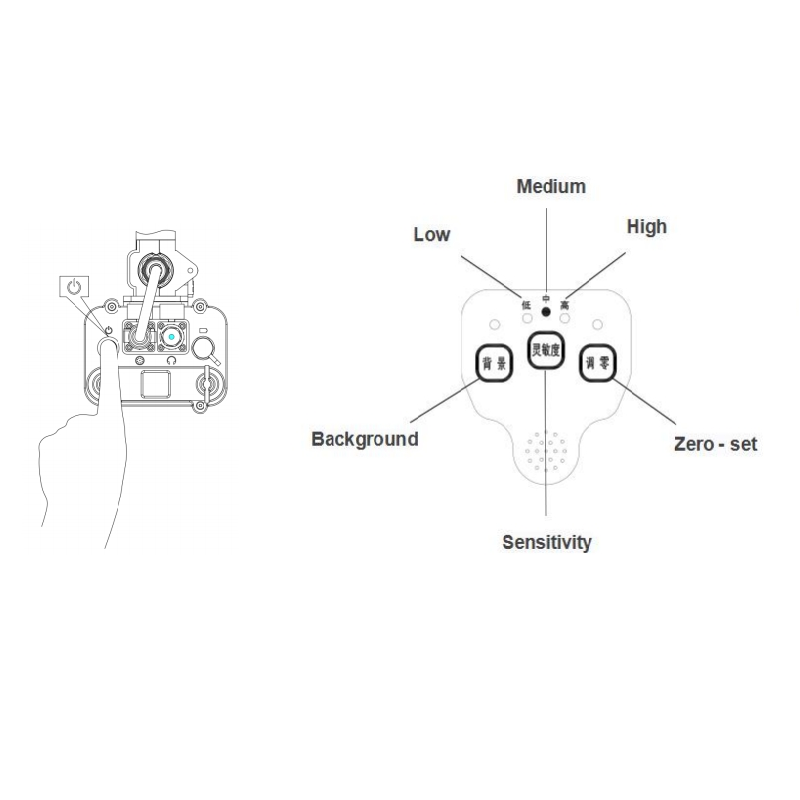

Metallic mine detectors' sensitivity could be adjustable by three selection.

Detecting sensitivity: GLD111 Anti-personnel Mine≥12cm

                                  GLD212 Anti-tank Mine≥13cm

Positioning accuracy: ≤4cm ( The distance between location andmine edge)

Mean detectivity: ≥97%

Continuous working hours: ≥24 hours(lithium battery)

Automatic low voltage alarm

Temperature range: - 40℃ to + 55℃ (exclude the battery)

Watertightness: Waterproof at the depth of 1 meter

Dimensions and Weight

The Searching coil diameter: Φ250mm

Length of the staff: 750-1450mm

Host weight: ≤2.9 kg ( include lithium battery )

≤3.2 kg (include 3 pieces of LR20 batteries )
