VK-012: Wi-Fi Enabled Dust Particle Detection for Industrial & Research Use

VK-012: Wi-Fi Enabled Dust Particle Detection for Industrial & Research Use

The VK-012 dust particle counter is a high-precision, multifunctional air quality monitoring device suitable for detecting particulate matter concentrations in various environments. The device features an advanced Tuya Wi-Fi module and supports remote control and data viewing through the Tuya app, enabling users to monitor environmental conditions in real-time.
The VK-012 dust particle counter is an ideal environmental monitoring solution for a variety of industrial and research settings, meeting the specific needs of different users.

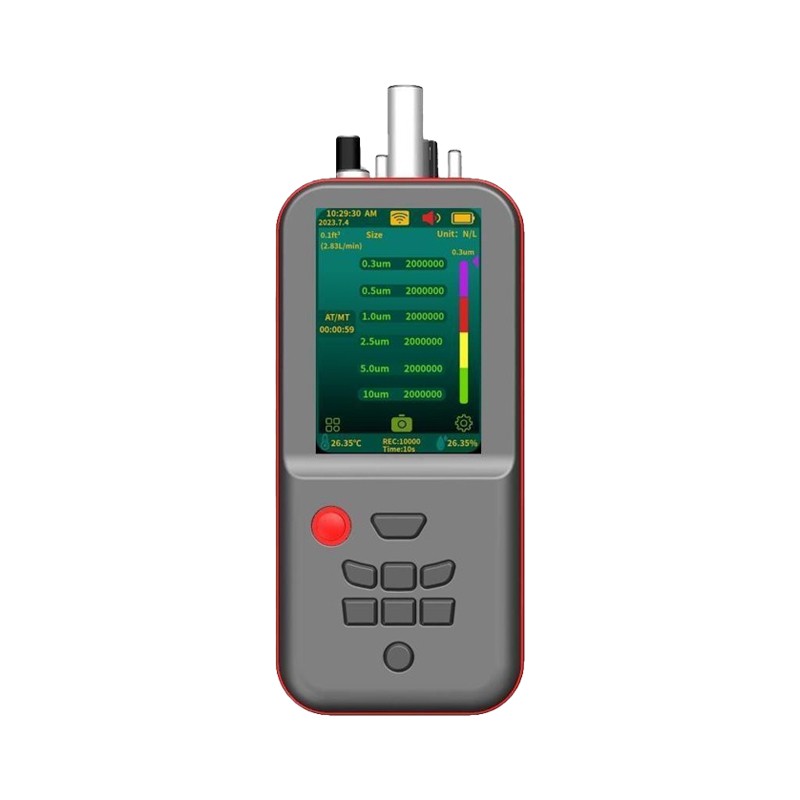

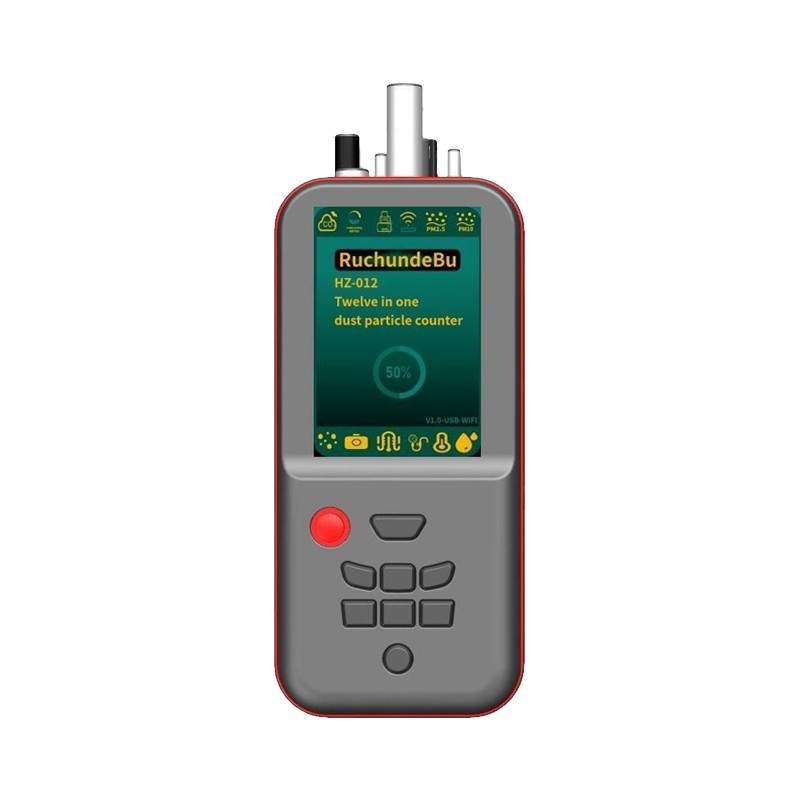

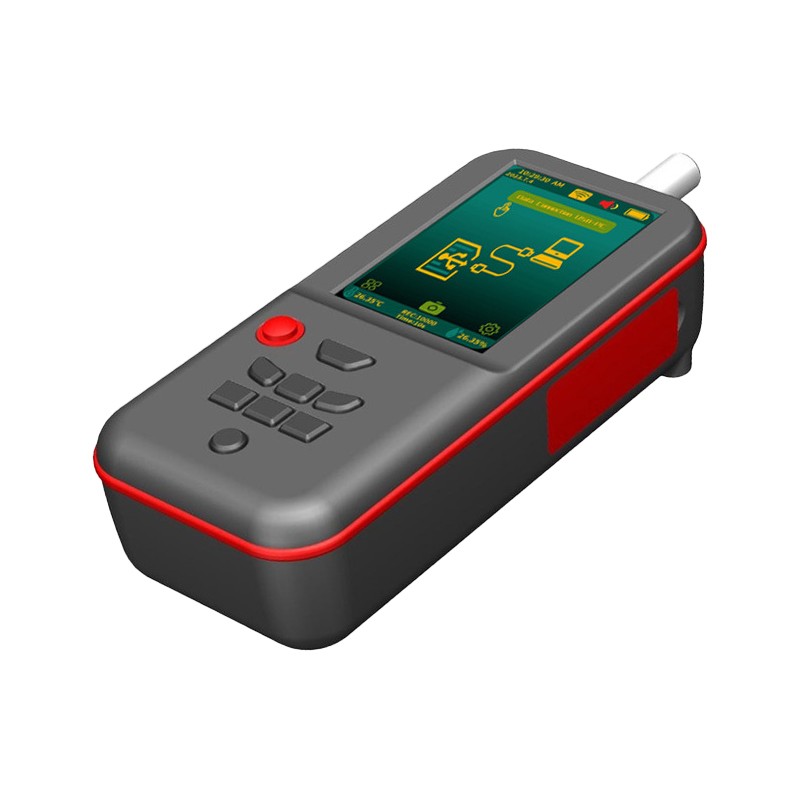

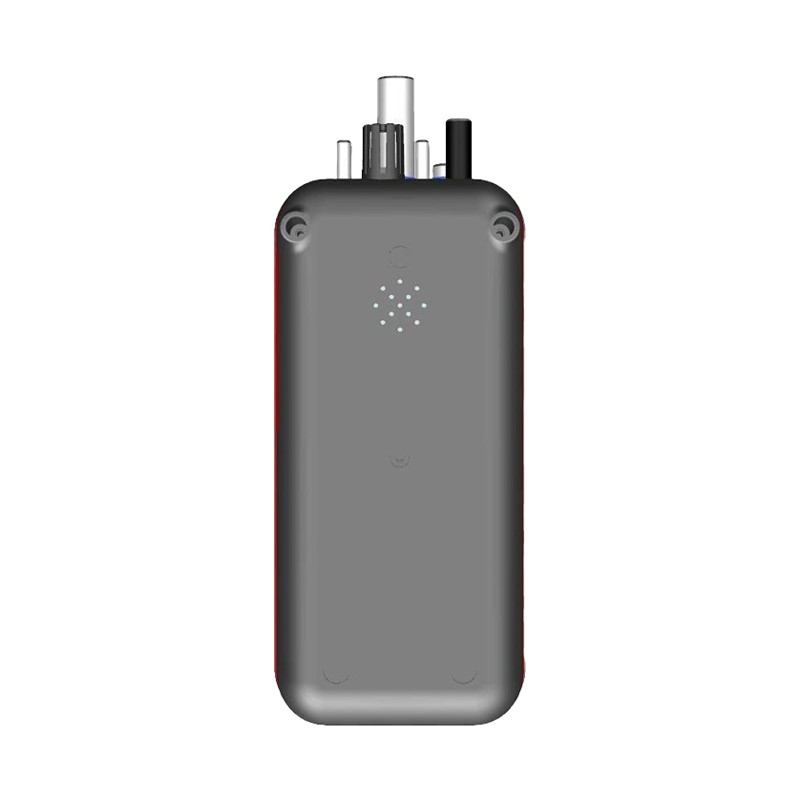

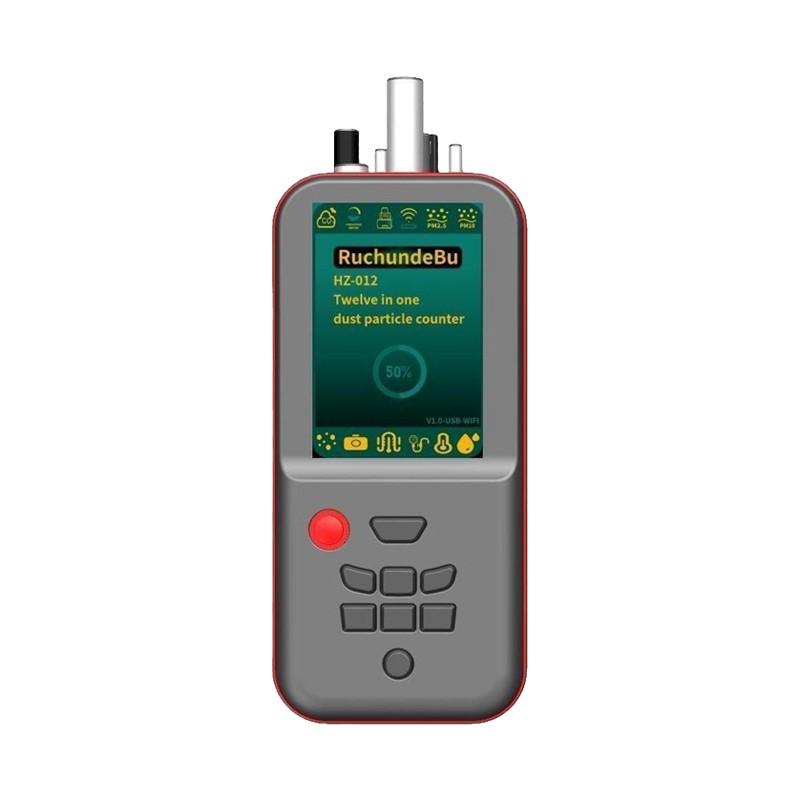

Dust Particle Counter VK-012

Product Overview

The VK-012 dust particle counter is an ideal environmental monitoring solution for a variety of industrial and research settings, meeting the specific needs of different users.

Application Areas

· Provincial and municipal pharmaceutical inspection institutes

· Blood centers

· Disease prevention stations

· Centers for disease control and prevention

· Electronic industry

· Pharmaceutical manufacturing facilities

· Semiconductor manufacturing

· Optical or precision mechanical processing

· Plastic and paint industries

· Hospitals

· Environmental protection agencies

· Testing institutes and other production enterprises and research departments

Key Features

· Six-channel particle size detection covering a wide range of application requirements.

· High-precision sensors ensuring accurate and reliable measurement results.

· Built-in Wi-Fi module for convenient remote data acquisition and device management.

· Large storage capacity for saving extensive data records.

· Touchscreen design for easy and intuitive operation.

· Long battery life supporting uninterrupted operation for extended periods.

Technical Specifications

Model	VK-012
Particle size (six channels)	0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Detection range	Particles: 2000000000 PCS/m³, Particles: 2000000 PCS/L, Pressure difference: ±36kPa, PM2.5/10: 0-1000 μg/m³, CO2: 0-10000 PPM, Temperature: -20~60°C, Humidity: 0~100%
Precision	Pressure difference: ±0.3% (FSO), Repeatability: ±0.2% (FSO), Linearity/Hysteresis phenomenon: ±0.29% (FSO), CO2: ±50 readings of 3%, PM2.5/PM10: 0-100 micrograms/cubic meter ±10 micrograms/cubic meter, 100-1000 micrograms/cubic meter ±10%, Temperature: ±2°C, Humidity: ±3%
Sample flow rate	0.1 ft³ (2.83 L/min)
Cleanliness standard	ISO 14644-1: IS05-IS09
Response time	1s
Stabilization time	60s
Memory card capacity	1 GB
WIFI APP	Tuya Smart
Power supply	3.7V/3400mAh lithium battery * 3 (18650 can be disassembled)
Screen size	4.0-inch TFT capacitive touch screen
Continuous working time	>10 hours
Charging time	2~3 hours
Data record number	50000 groups (customizable)
Data documentation	View on device or computer
Net weight	1000 g
Product dimensions	231x88x56 mm
