VK-384 Thermal Imaging Camera – High-Definition Thermal Inspection Tool

The VK-384 Handheld Thermal Imaging Camera is a high-performance thermal imaging tool widely used in building inspection, vehicle maintenance, floor heating inspection, electrical inspections, and other fields. It employs advanced uncooled vanadium oxide detector technology, enabling precise capture of thermal distributions in complex environments. This helps users quickly identify fault points and increase work efficiency.
The VK-384 Handheld Thermal Imaging Camera, with its accurate temperature measurement capabilities and flexible operational features, is an essential tool for professional technicians. Whether for routine maintenance or troubleshooting, it provides reliable support.

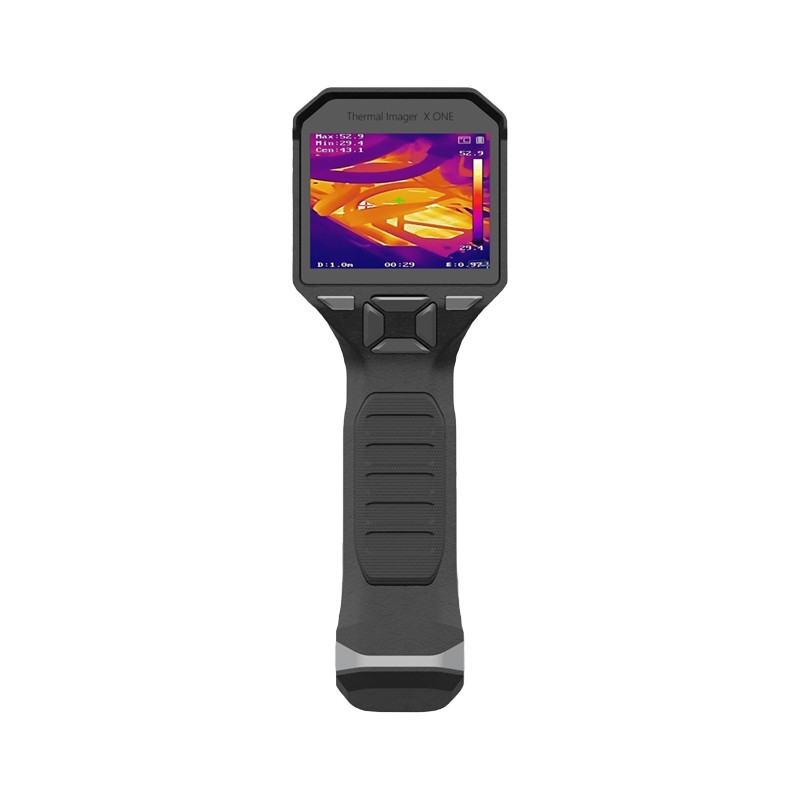

VK-384 Handheld Thermal Imaging Camera

Product Overview

The VK-384 Handheld Thermal Imaging Camera, with its accurate temperature measurement capabilities and flexible operational features, is an essential tool for professional technicians. Whether for routine maintenance or troubleshooting, it provides reliable support.

Application Scenarios

· Building Inspection: Detecting heat loss in walls, roofs, and other structures.

· Vehicle Maintenance Inspection: Diagnosing faults in engines, braking systems, and other components.

· Floor Heating Inspection: Checking for leaks and blockages in underfloor hot water pipes.

· Electrical Inspection: Identifying overheating issues in electrical equipment.

· Electrical Panel Fault Detection: Monitoring temperature anomalies in electrical connections.

· Floor Heating Hot Water Pipe Inspection: Ensuring proper operation of floor heating systems.

· Vehicle Fault Detection: Quickly locating faults in automotive engines and other components.

· Motor Fault Detection: Identifying overheating within motors.

Key Features

· High-Precision Temperature Measurement: Outstanding temperature measurement range and accuracy suitable for various applications.

· Multi-functional Applications: Widely used in construction, automotive, electrical industries, meeting diverse inspection needs.

· Flexible Emissivity Adjustment: Emissivity can be adjusted according to different materials for improved measurement accuracy.

· High-Definition Infrared Images: 384×288 pixel infrared image resolution ensuring clear details.

· Convenient Operation: Manual focusing function for adjusting image clarity as needed.

· Intuitive Display: 3.5" TFT LCD display offering clear visual effects.

· Multiple Pseudo-color Modes: Five pseudo-color modes available for easy identification of different temperature zones.

· Data Storage: Built-in 4GB SD card for convenient storage and transmission of image data.

Technical Specifications

Model	VK-384
Detector Type	Uncooled Vanadium Oxide Detector
Temperature Measurement Range	-20°C to +50°C (@25°C ambient temperature)
Accuracy (Typical)	>0°C ±2°C or ±2%, whichever is greater<br/>≤0°C ±5°C or ±5%, whichever is greater (@25°C ambient temperature)
Emissivity	Default 0.95 (Adjustable from 0.01 to 1)
Thermal Sensitivity	0.1°C
Frame Rate	25 Hz
Infrared Wavelength Band	8 μm to 14 μm
Focusing Method	Manual Focus
Infrared Image Resolution	384×288
Display Type	3.5" TFT LCD
Pseudo-color Modes	White Hot, Black Hot, Red Hot, Iron Red, Rainbow
Storage Medium	4GB SD Card
Image Format	JPG
Battery	3.7V/26650 Lithium-ion Battery
