VWS-A8E roller scale

Product Overview

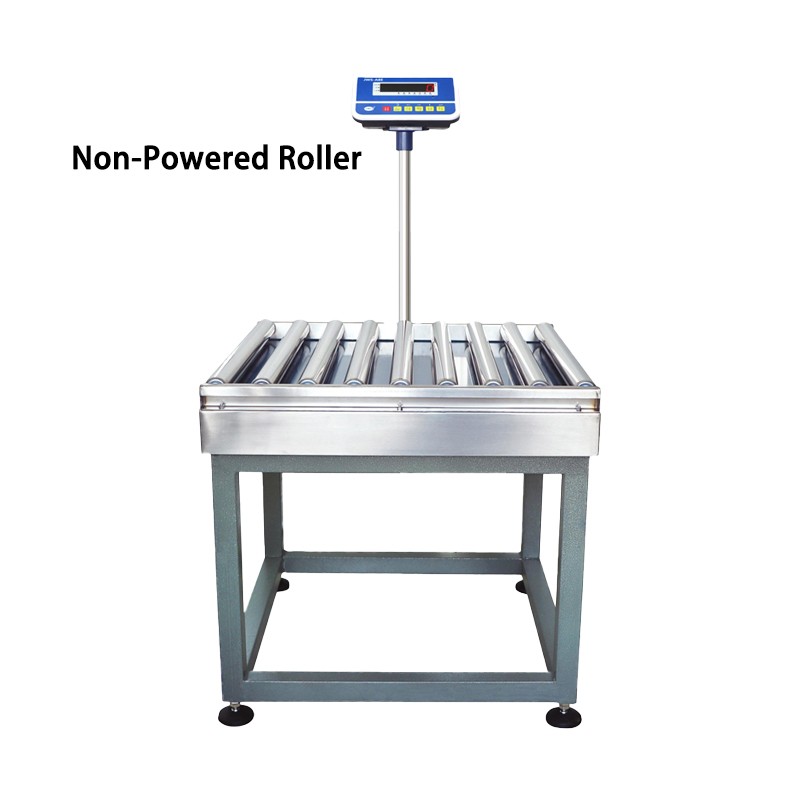

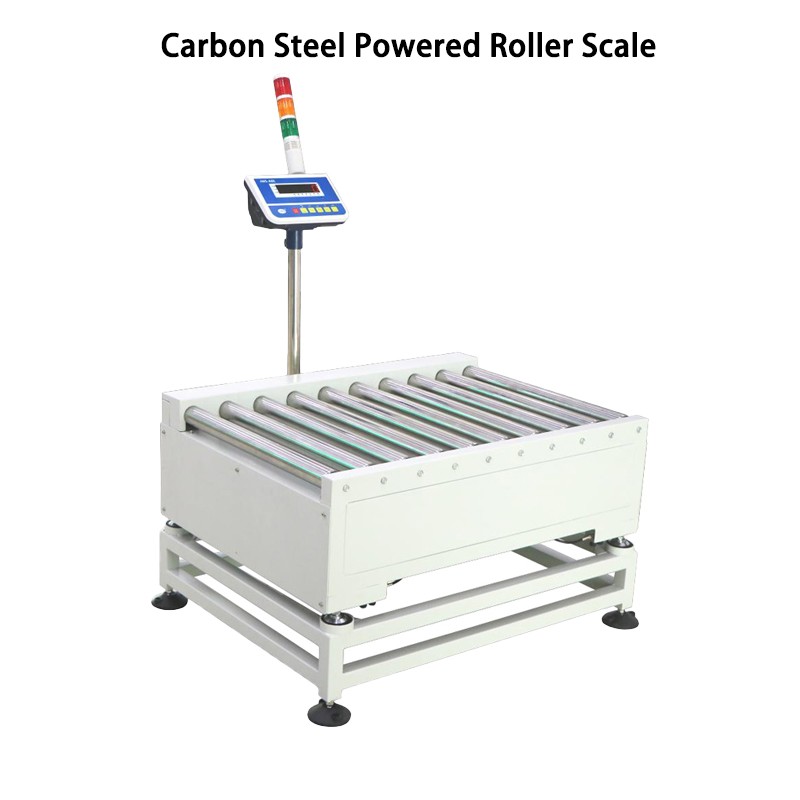

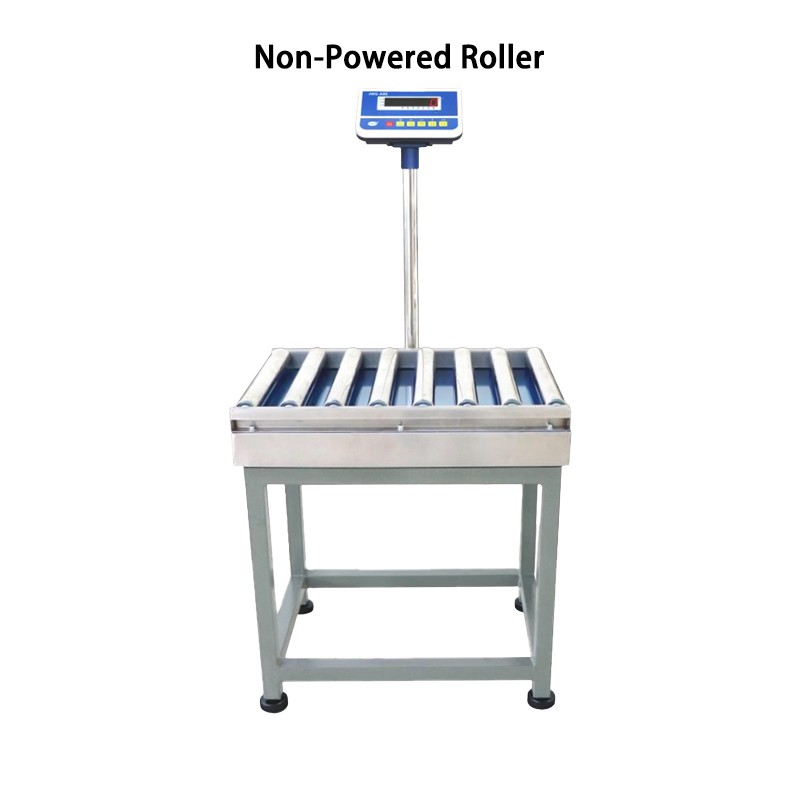

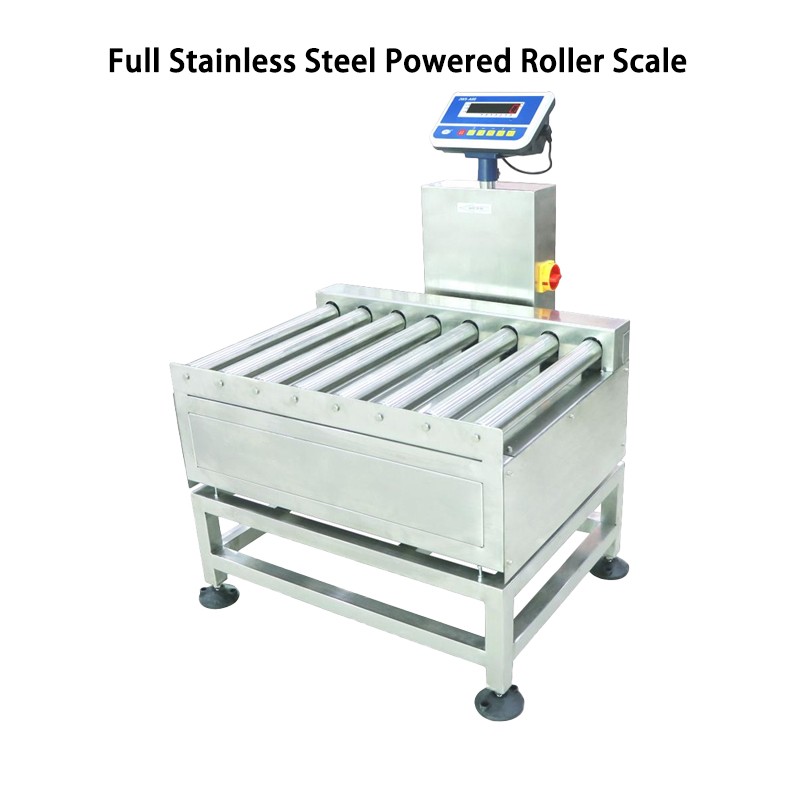

The VWS-A8E roller scale is a high-precision, multifunctional industrial weighing device, available in both non-powered and powered versions. It is suitable for item weighing needs in logistics centers, warehouses, manufacturing plants, and other settings. The scale features a 32mm tall LED digital display that is easy to read and supports the conversion between kg, g, and lb units. Its robust construction includes a stainless steel or thickened carbon steel frame with an enamel finish, stainless steel rollers, and high-precision load cells to ensure accurate and reliable weighing results. The JWS-A8E is a comprehensive solution for high-quality weighing, offering outstanding performance and extensive expandability to meet specific industry requirements.

Key Features

· Display & Units: 32mm tall LED digital display with support for kg/g/lb unit conversion.

· Basic Functions: Includes zeroing, taring, gross/net weight switching, accumulation, built-in alarms, weight memory, automatic averaging, and more.

· Power Supply: Supports AC/DC power supply with an included AC 220V power cord and a built-in 6V4A battery.

· Instrument Structure: ABS plastic housing with a 6-key membrane keypad for easy operation.

· Load Capacity: Can connect up to 8 sensors with 350Ω resistance.

· Scale Structure: Stainless steel or thickened carbon steel frame with enamel coating, stainless steel rollers, and high-precision load cells.

· Accuracy: High-precision sensors with accuracy of 1/15,000 and an internal resolution of 600,000.

· Alarm Function: Built-in three-level alarm (upper limit, lower limit, qualified), with customizable alarm ranges.

· Expandable Features: Optional three-color alarm light, external printer connectivity, Bluetooth communication, RS232 interface, PLC switch output, USB direct-to-desktop, Ethernet communication, and more.

Optional Features

· Communication Interface: Supports various communication protocols, compatible with PDAs or courier software, and supports secondary development.

· Three-Color Alarm Light: Expandable three-color light alarm function.

· Bluetooth Function: Supports Bluetooth communication, compatible with logistics software.

· Analog Output: Supports 4~20mA analog output.

· USB Module: Supports manual, automatic, automatic within qualified range, and manual within qualified range storage modes.

· Printing Function: Supports customizable printing and can store up to 999 variable values.

· Remote Control: Supports remote control via the internet, suitable for custom project development.

Application Scenarios

· Logistics centers

· Warehouse management

· Quality control on production lines

· Packaging workshops

Notes

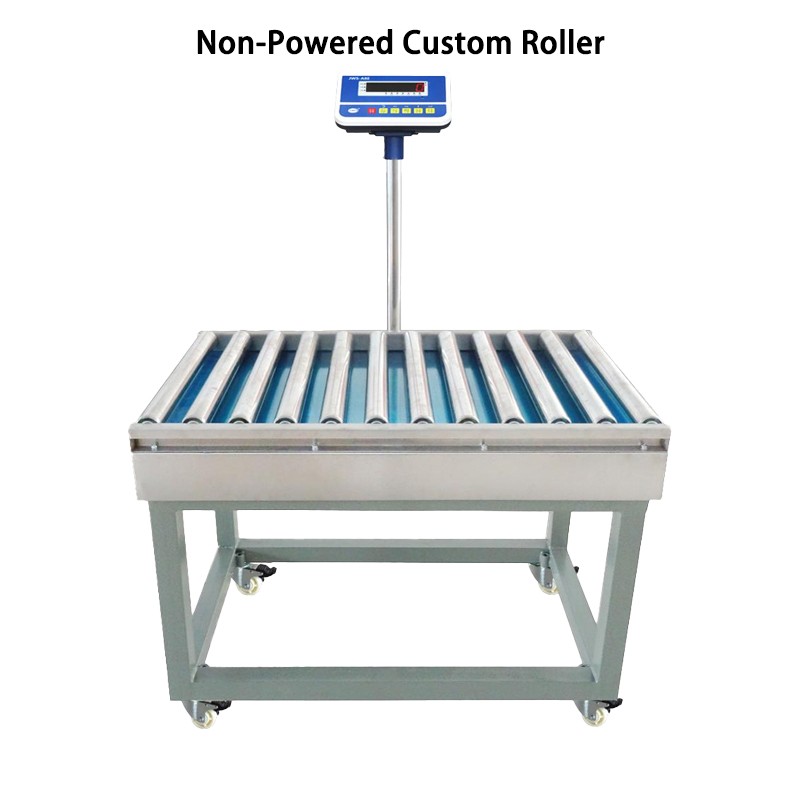

· Roller dimensions can be customized according to customer needs. Some standard sizes may be in stock; please contact us for details.

· Customization beyond standard models is available upon request. Please contact your sales representative for more information.
