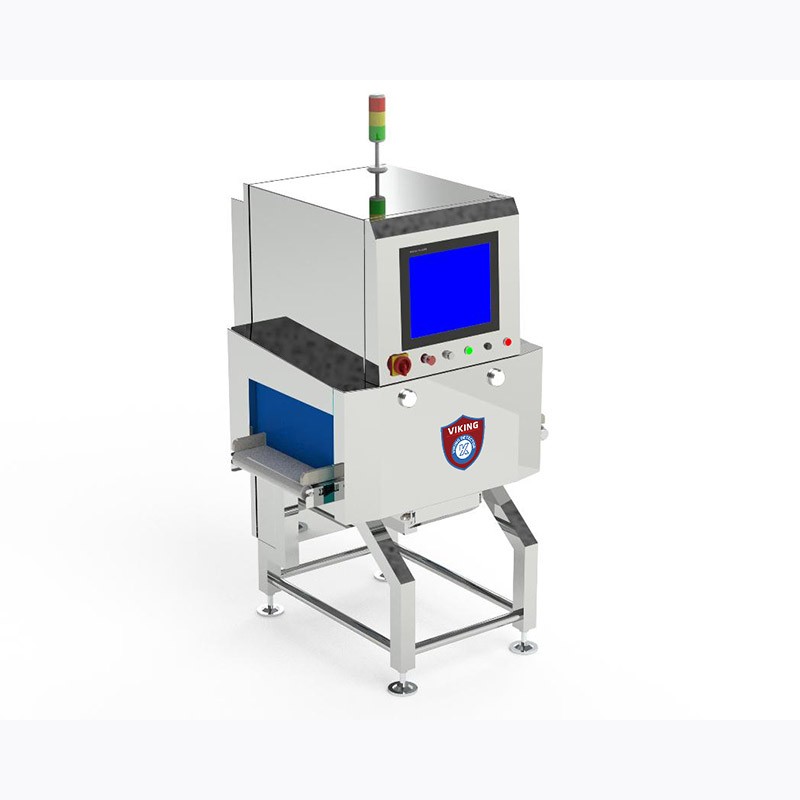

X-ray Foreign Object Detector scanner machine manufacturers VS-4025

Detection Principle of the X-ray Foreign Object Detection Machine
The X-ray foreign object detection machine utilizes the penetrating property of X-rays. It emits X-rays from the X-ray generator, which are then irradiated onto the product being tested. The X-ray detector receives the Xray imaging, and through image processing and visual recognition, extracts and judges the image information, integrating important technologies such as optoelectronics, digital signals, image processing, and recognition.

x ray security scanning detector machine

X-ray Foreign Object Detector Parameters

Model	VS4025
Best Empty Machine Detection Accuracy	Stainless steel ball: Φ 0.6 mm Glass ball: Φ 2.0 mm; Ceramic ball: Φ 1.0 mm
Detecting object size	Detecting Max height.	170 mm
	Detecting Max width.	400 mm
Conveyor Device Parameters	Conveyor belt speed	20~70 m/min
	Conveyor belt width	400 mm
	Max height of the conveyor window	250 mm
	Max load of the conveyor device	20KG
X-ray Source	150W 80kv domestic single source
Detector	0.4 mm, domestic detector, single detector
Display	17-inch full-color touch screen, Shiwei (China)
PC	Dell (USA)
Operating System	Windows 11
Operation Method	Touch screen operation
Supported Data Interfaces	LAN port, USB port
Product Management	Complete product log
Parameter Adjustment	Self-learning/Manual learning options available
Image Management	Image save/print/analysis
Power Supply	AC 220V, 1.2KVA，50/60Hz
Belt Motor	Delta servo motor, Taiwan, China
Overall Equipment Size	LWH：117711511896 mm
Cleaning Method	Easy to clean
Temperature Control	Industrial air conditioning for automatic temperature control
Environmental Temperature	0~40°C
Environmental Humidity	30~90%, no frosting
X-ray Leakage	< 1µSv/ h
Overall Material	304 stainless steel
Protection Level	IP65
Conveying Weight	10KG
Protection Method	Removable protective curtain/protective cover
Belt Direction	from left to right/Optional from right to left
Ejection Mechanism (Optional)	Paddle/pusher/flipper/blow-off
