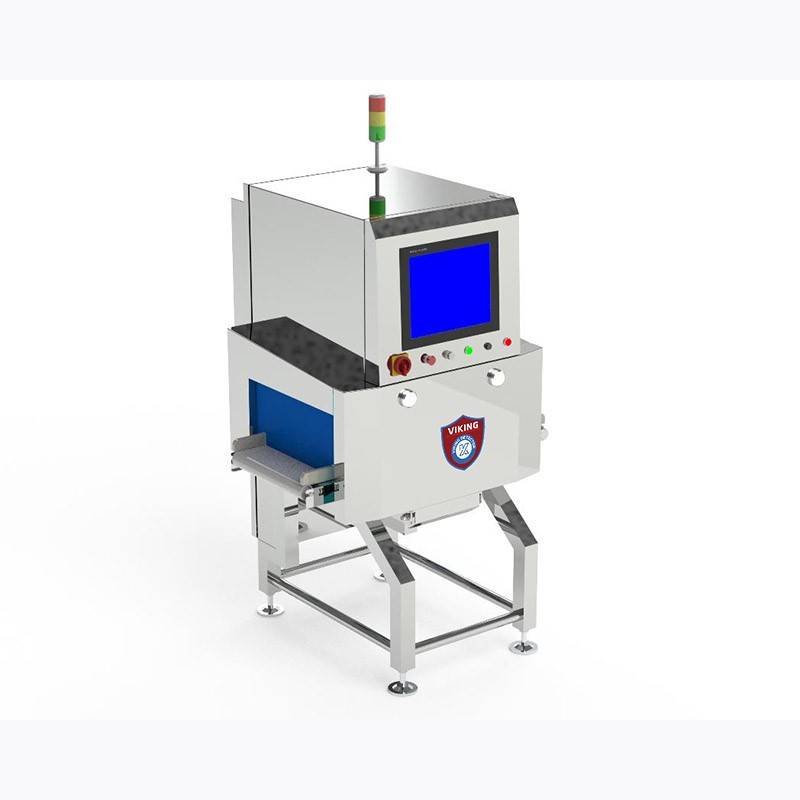

X-ray Foreign Object Detector machine manufacturers VS3019

Best Empty Machine Detection Accuracy

Stainless steel ball: Φ 0.6 mm

Glass ball: Φ 2.0 mm;

Ceramic ball: Φ 1.0 mm

Detecting object size

Detecting Max height.

130 mm

Detecting Max width.

300 mm

Conveyor Device Parameters

Conveyor belt speed

20~70 m/min

Conveyor belt width

300 mm

Max height of the conveyor window

190 mm

Max load of the conveyor device

20KG

X-ray Source

150W 80kv domestic single source

Detector

0.4 mm, domestic detector, single detector

Display

17-inch full-color touch screen, Shiwei (China)

PC

Dell (USA)

Operating System

Windows 11

Operation Method

Touch screen operation

Supported Data Interfaces

LAN port, USB port

Product Management

Complete product log

Parameter Adjustment

Self-learning/Manual learning options available

Image Management

Image save/print/analysis

Power Supply

AC 220V, 1.2KVA，50/60Hz

Belt Motor

Delta servo motor, Taiwan, China

Overall Equipment Size

L*W*H：1178*1051*1854 mm

Cleaning Method

Easy to clean

Temperature Control

Industrial air conditioning for automatic temperature control

Environmental Temperature

0~40°C

Environmental Humidity

30~90%, no frosting

X-ray Leakage

< 1µSv/ h

Overall Material

304 stainless steel

Protection Level

IP65

Conveying Weight

10KG

Protection Method

Removable protective curtain/protective cover

Belt Direction网站有漏洞，请及时修复漏洞！！！！ 请勿点击！！

from left to right/Optional from right to left

Ejection Mechanism (Optional)

Paddle/pusher/flipper/blow-off
