RJX4000 Tabletop Hazardous Liquid Detector | Fast and Accurate Flammable Liquid Detection for Airports and High-Traffic Areas

Tabletop Hazardous Liquid Detector

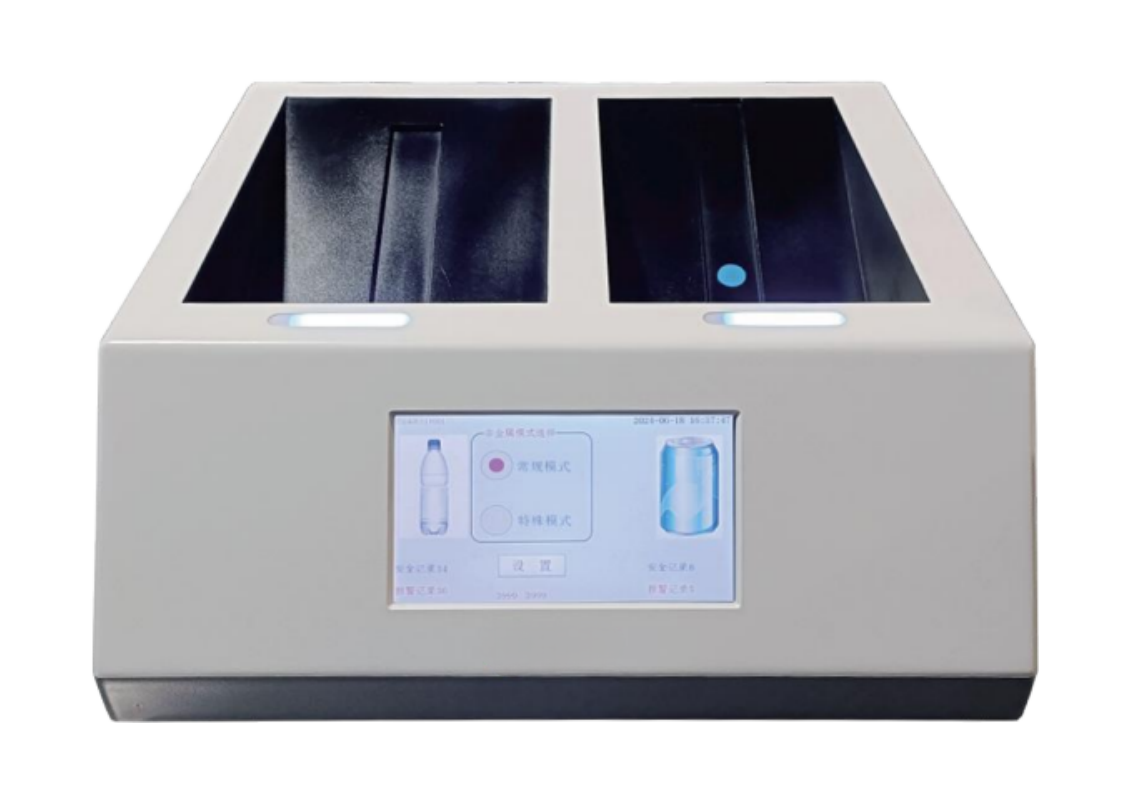

RJX4000 Tabletop Hazardous Liquid Detector

Product Introduction:

The RJX4000 tabletop hazardous liquid detector uses electromagnetic induction measurement combined with circuit detection to adapt to the material and wall thickness requirements of the container for liquid inside. By utilizing the dielectric constant difference characteristics of the liquid to determine the safety of the liquid. With this instrument, inspection units can quickly judge whether the inspected liquid is flammable or explosive without opening the container. When detecting water, soft drinks, milk products, etc., which are not dangerous liquids, the instrument gives a safe prompt; when detecting alcohol, gasoline, etc., which are flammable and explosive dangerous items, the instrument gives an alarm prompt.

The RJX4000 tabletop hazardous liquid detector consists of two functional modules: one for detecting non-metallic material containers and another for detecting metallic material containers. The two functional modules can work independently without affecting each other.

   Suitable for security checks in crowded areas or important places such as airports, subways, stations, public service departments, public gatherings, etc.

Product Features:

· Fast detection speed

· Wide detection range

· Maintenance-free calibration

· Small device size, lightweight, simple operation

· Simultaneous detection of metal and non-metal, no mutual interference

· 7-inch touch screen display, clear results at a glance

· High software integration, no hardware adjustment required

Performance Parameters:

· Weight: 4.72kg

· Minimum detection volume: 100ml

· Power consumption: ≤36W

· Self-calibration time: ≤2 seconds

· Startup time: ≤3 seconds

· Operating temperature: -10°C to 55°C

· Dimensions: ≤420mm (length) x 400mm (width) x 165mm (height)

· Data transmission: USB, Ethernet port, WIFI, RS232

· Relative humidity: 0-99% RH (non-condensing)

· Power supply: AC100-240V (50/60Hz)

· Alarm: Sound alarm / indicator light alarm / LCD screen

· Available detection modes: Normal and special two modes

· Detection target: Flammable liquids in sealed containers

· Container materials: Plastic / glass / metal / ceramic / paper (no aluminum foil coating)

· Detection speed: Non-metallic container 1 second - 2 seconds, metallic container not more than 5 seconsd

· Detectable liquid item container: 60mm ≤ height ≤ 400mm, 30mm ≤ diameter ≤ 200mm
