Handheld Liquid Crystal Screen Hazardous Liquid Detector | Accurate Results in 1 Second for High-Traffic Security Locations

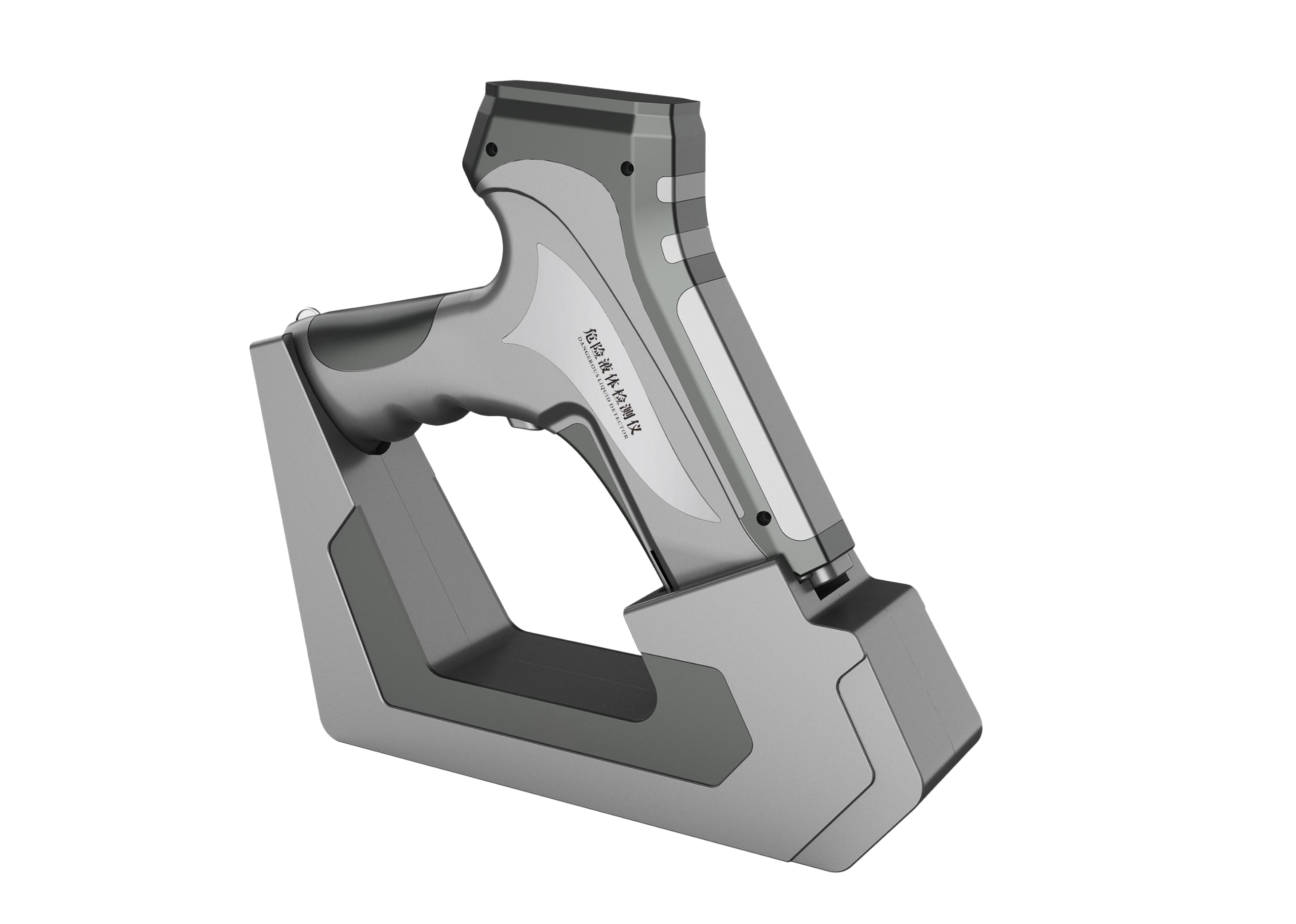

Handheld Liquid Crystal Screen Hazardous Liquid Detector

Accurate results in one second | Highly sensitive and quick identification

Product Overview

The handheld hazardous liquid detector is an innovative device uniquely designed and developed by our company, reaching an advanced industry level. This product can distinguish between flammable and explosive liquids, such as liquid explosives, gasoline, acetone, ethanol, and thinner, from safe liquids like water, cola, milk, and juice, without directly contacting the liquid. It effectively prevents the entry of items containing hazardous liquids (which can cause combustion or explosion) into secure areas. This detector is essential for high-traffic and high-security locations such as train stations, subways, theaters, government institutions, shopping malls, large conference venues, embassies, police stations, fire stations, courts, border posts, military facilities, stadiums, etc.

Features

★ Eco-Friendly Technology: Uses quasi-static computer tomography to determine the dielectric constant and conductivity of the liquid to assess its flammability and explosiveness in an environmentally friendly and safe way.

★ Wide Detection Range: Capable of detecting 49 types of flammable and corrosive liquids, including gasoline, kerosene, diethyl ether, ethylene glycol, benzene, dichloroethane, tetrahydrofuran, cyclohexane, diethylamine, isopropyl ether, toluene, nitrobenzene, cyclohexanone, styrene, carbon disulfide, isopropanol, paint, hydrochloric acid, cyclopentane, tert-butanol, methyl tert-butyl ether, petroleum ether (90%～60120%), 1,3,5-trimethylbenzene, ethyl acrylate, dioxane, diesel, anhydrous ethanol, acetone, banana oil, petroleum ether (30%～60%), acetonitrile, xylene, methyl acrylate, chloroform, n-pentane, n-octane, n-hexane, methanol, nitromethane, paint thinner, isopentane, pyridine, triethylamine, petroleum ether (60%～90%), n-propanol, chloropropene, and piperidine.

★ Fast Detection Speed: Detects non-metallic container liquids in just 1 second, making it the fastest liquid detector in the domestic market.

★ Various Alarm Settings: Equipped with audible, visual, and LCD screen image alarms, it can display alerts clearly in both bright (10001X) and dim (251X) lighting conditions.

★ Ultra-Power Saving Mode: Built-in rechargeable lithium battery with an ultra-power-saving design, supporting continuous use for over 30 days and standby time of at least 120 days.

★ Large Data Storage Capacity: Capable of storing over 150,000 records. Users can add to the hazardous substances database and update it via a USB connection.

★ Learning Feature: Includes a learning function for users to add to the hazardous substances database, and they can update the database through a USB connection.

Technical Specifications

· Dimensions: 210 × 50 × 70 mm

· Display: 0.91-inch OLED display

· Startup Time: 1 second

· Detection Objects: Detects hazardous liquids such as gasoline, alcohol, and thinner as listed under "GB 12268-90."

· Application: Non-metallic containers

· Static Induction: Unique static induction feature; powers on when touched and enters sleep mode when released

· Power Supply: Built-in rechargeable lithium battery, supports continuous usage for over 30 days, standby time for over 120 days

· Alarm Mode: Dual sound and light alarms:

o Red light indicates hazardous items

o Green light indicates safe items

· Data Storage: Capable of storing up to 150,000 records

· Database Addition: Includes a learning feature for users to add hazardous substances and update the database via USB

· Data Export: Supports USB data export

· Detection Frequency: 5 MHz

· Operating Voltage: 3.7V

· Weight: 190 g

· Operating Temperature: -10°C to +55°C
