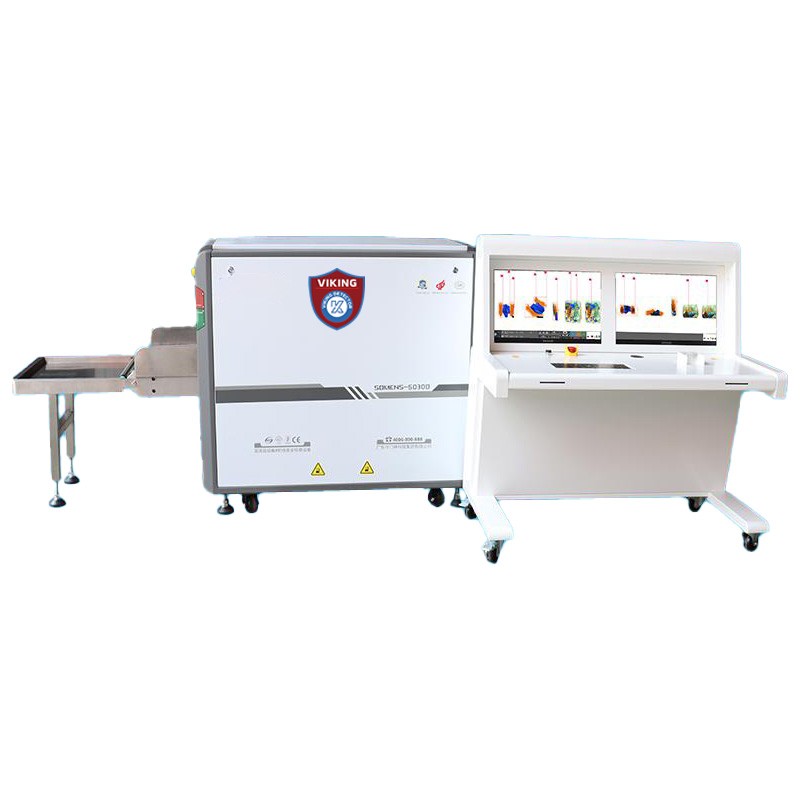

Dual View medium-sized tunnel x-ray machine the VMS-5030D

x ray  security  scanner machine

Dual View medium-sized tunnel X-ray machine

Performance Features

- The image is clear with a line resolution of 0.0787mm (40AWG), capable of penetrating 40mm thick steel plates.

- Equipped with high-end quality brands such as the British imported Sens-Tech acquisition system, Japanese Hamamatsu original detectors, and dual digital X-ray sources, ensuring stable quality and performance, representing the highest configuration in China.

- Features a 21.5-inch 1920*1080 high-resolution LCD display for even clearer images.

- The frame is covered with 2-6mm lead sheets for all-round protection, with an extremely low radiation leakage dose rate. The radiation dose rate around the equipment is close to the natural background level, meeting international and domestic health and safety standards.

- Color/monochrome image switching, organic material rejection, and inorganic material rejection make it easier to distinguish between object types.

- Multiple image processing functions such as super enhancement, local enhancement, smoothing, high penetration, super penetration, low penetration, brightness increase, darkness decrease, gray sweep, histogram equalization, suspicious organic material enhancement display, mirror, variable absorption rate, zoom in, and zoom out, further increase image clarity. The initial image display can be restored with one click, making operation simple and convenient.

- Provides an automatic sensing function for energy-saving and environmental protection, convenient for operators to use, green and energy-saving, extending the service life of the equipment.

- Item type auxiliary detection function: During the scanning process, it can automatically identify flammable and explosive organic and inorganic metals in the inspected object and categorize them with different color frames. It can also give special color frame prompts for areas that cannot be penetrated.

- Provides a dangerous goods image insertion function (TIP function), facilitating the training and assessment of operators' image recognition abilities, improving their work capabilities and vigilance.

- Quick emergency stop: The device can be stopped at any time using software or hardware to handle various emergencies.

- The performance system simulates the device's daily work, which can be used to train and assess the system operation and image recognition abilities of relevant personnel.

- Designed according to ergonomic principles, with a dedicated keyboard, image display, and human-computer interaction interface, effectively improving the simplicity of equipment use.

- The remote control console is specifically designed for security inspection work: featuring a flip-up explosion-proof screen design, effectively preventing screen damage and unauthorized operation during non-working hours; the console is equipped with a high-definition display and a new process security inspection equipment-specific metal pull.

- Supports image saving function, which can be saved to USB storage devices and supports ".bmp", ".jpg", ".gif", ".png", ".ux", ".tif" image formats.

- Adopts a modular design, with each module handling different tasks, facilitating fault detection and maintenance.

- Unique anti-crushing hand design under the conveyor belt at the channel entrance and exit, on both sides of the channel, and on the loading rack, ensuring safety and reliability.

- Four corner indicator lights display the working status of the device from all angles, with a simple and beautiful appearance.

- Surface diamond pattern printing, more resistant to cutting and scratching during use; 3mm thickness is more resistant to stretching and deformation; surface static treatment, less likely to be contaminated during use.

- Made of national standard 304 stainless steel, 2-3mm national cold-rolled plate, and square tube steel, integrating advanced technology, with a stable and sturdy structure, rust-proof, corrosion-resistant, and cable damage prevention.

- The noise of the equipment at any point within 1m of the outer surface does not exceed 52dB(A).

Technical Specifications
