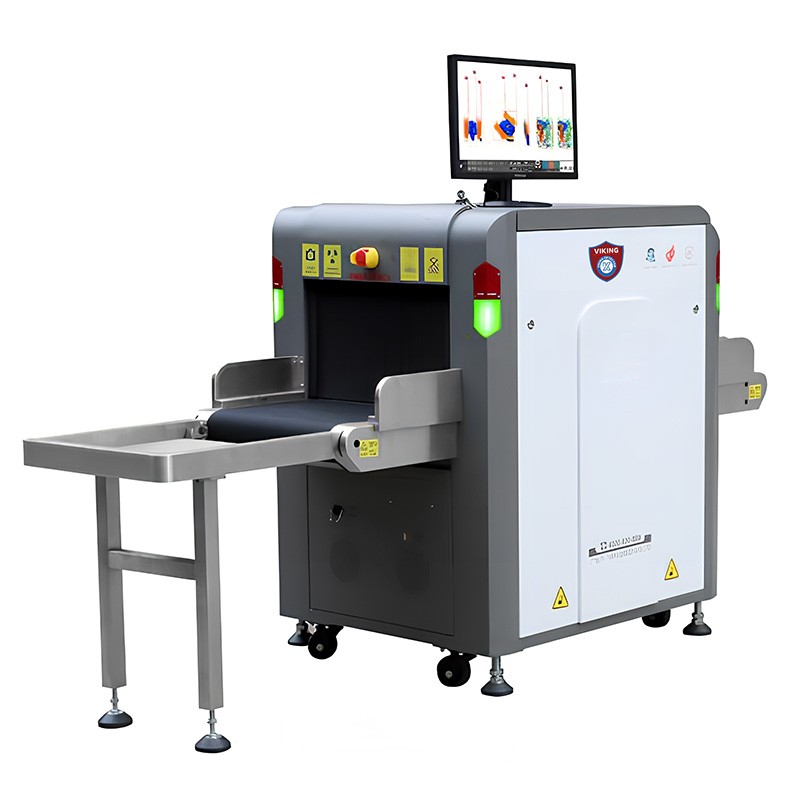

double-energy X-ray inspection device machine VMS-5030

The VMS-5030 medium-sized tunnel X-ray machine has been certified by the Ministry of Public Security, with leading international performance parameters. It can penetrate 15mm thick steel plates and has a line resolution of 0.0787mm for a single solid copper wire (40AWG). It features one-touch power on/off, energy-saving, and environmental protection. The advanced material recognition function can distinguish between organic, inorganic, and mixed materials based on the effective atomic number of the object being inspected, assigning different colors to aid operators in image identification and judgment.
Widely used in: public security, armed police, courts, prisons, subways, customs stations, ports, logistics, hotels, schools, factories, and other important departments of public places.
Mainly used to detect hidden prohibited items and flammable and explosive materials in medium and small-sized goods, packages, mail, and luggage, such as controlled knives, firearms, fireworks, alcohol, ethanol, gasoline, sulfuric acid, etc.

EMAIL

x-ray security scanning inspection equipment  machine

double-energy X-ray inspection device

Performance Features

· Clear image with a line resolution of 0.0787mm (40AWG) and a penetration power of 15mm steel plate.

· Equipped with a 19.5-inch high-resolution LCD display with 1920*1080 resolution and 65536 grayscale values for clearer image effects.

· Extremely low radiation leakage dose rate, with the radiation dose rate around the equipment close to the natural background level, meeting international and domestic health and safety standards.

· Color/monochrome image switching for easy differentiation of object types.

· Multiple image processing functions such as super enhancement, local enhancement, high penetration, low penetration, brightness increase, darkness decrease, gray sweep, mirror, zoom in, and zoom out, further increasing image clarity, and one-click restoration to the initial image display.

· Quick emergency stop: The device can be stopped at any time using software or hardware to handle various emergencies.

· Provides a dangerous goods image insertion function (TIP function) for training and assessment of operators' image recognition abilities.

· Supports image saving function, with the ability to save to USB storage devices and support for ".bmp", ".jpg", ".gif", ".png" image formats.

· Modular design, with each module handling different tasks, facilitating fault detection and maintenance.

· Equipment surface noise at any point within 1m does not exceed 58dB (A).

· Optional automatic sensing function for convenience, green energy-saving, and extending equipment service life.

· Optional dedicated keyboard designed according to ergonomic principles, image display, and human-computer interaction interface to effectively improve the simplicity of equipment use.

· Multiple hardware options available: remote operation console, automatic sensing, surveillance cameras, LED advertising screens, GPS positioning, etc.


Technical Specifications

General Specifications

Channel dimensions

503mm(W)*303mm(H)

Conveyor belt speed

0.22m/s

Maximum load

60kg

Line resolution

40AWG(0.0787mm)

Penetration resolution

24AWG(0.511mm)

Spatial resolution

Horizontal 1.0, Vertical 1.6

Penetration power

15mm steel plate

Display

19.5-inch high-resolution display; resolution 1920*1080



X-ray Generator

Tube voltage

80KV

Tube current

0.6mA

Beam emission angle

60°


Image Processing System

Image enhancement functions

Color/gray, organic rejection, inorganic rejection, super enhancement, local enhancement, high penetration, low penetration, brightness increase, darkness decrease, gray sweep, reverse color

Image Zoom and Local Zoom


Image zoom (1~96 times arbitrary scaling); supports local zoom function (Magic Mirror).

Image pullback forward

Any image of the passed package can be viewed


Safety and Environmental Design

Single check dose

≦1.5μSv/h

Radiation leakage dose rate

≦0.1μSv/h

Environmental design

Double-layer 0.35mm lead equivalent, with a protective film on the lead curtain to avoid lead pollution and extend service life.

Film safety

Safe for ISO 1600 film


System Functions

Date/time display, luggage count, user management, system working time, X-ray beam warning, automatic startup calibration, image storage and retrieval, quick emergency stop, working status display, emergency stop/micro-motion/photoelectric trigger prompt.


Optional Functions

Automatic sensing function, dangerous goods image insertion (TIP function), GPS positioning


Installation Data

Overall dimensions (including receiving rack)

2308mm(L)*826mm(W)*1186mm(H)

Cooling working cycle

Sealed oil cooling/100%

Operating voltage

220VAC(±10%) 50/60Hz

Power consumption

<1kw
