VT-502 Portable SDR Frequency Jammer - Advanced Wireless Signal Interference

VT-502 Portable SDR Frequency Jammer - Advanced Wireless Signal Interference

The VT-502 Portable SDR Frequency Jammer is a professional device designed for wireless signal jamming, suitable for high-risk scenarios such as bomb disposal, anti-terrorism, and technical reconnaissance. It effectively shields various wireless signals to ensure on-site safety.

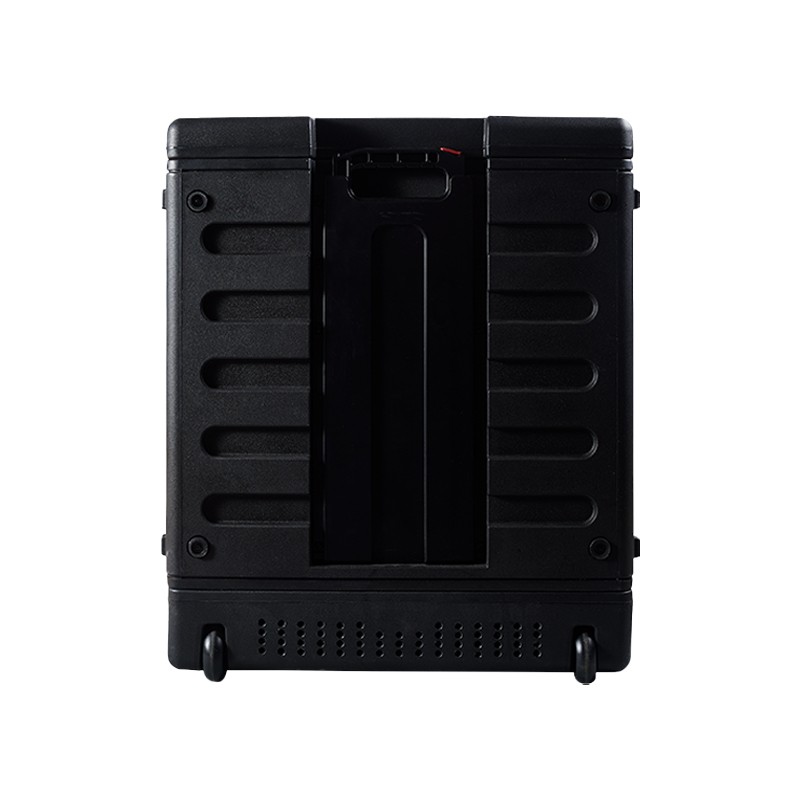

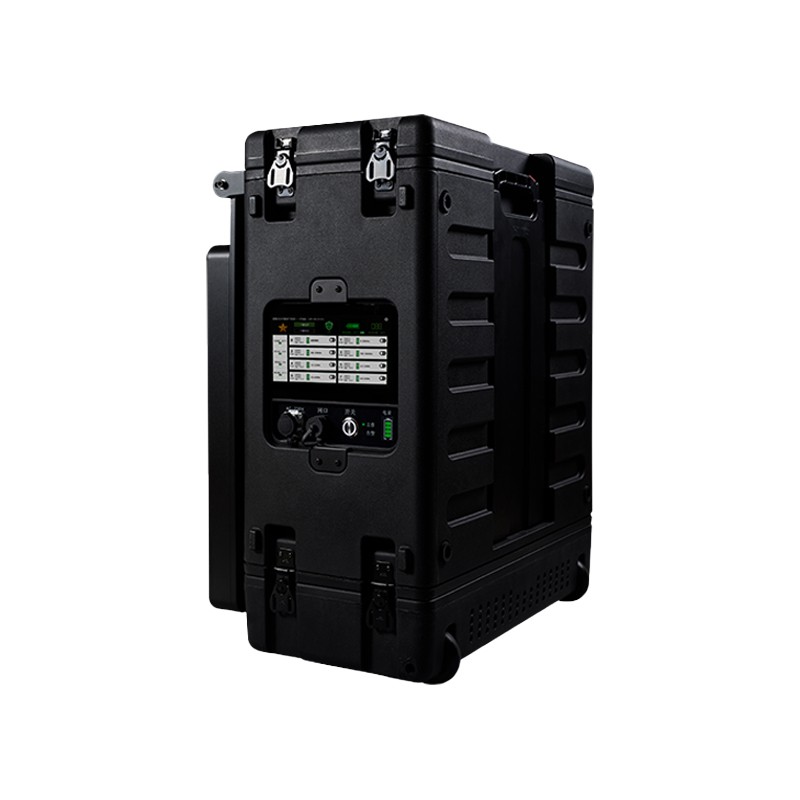

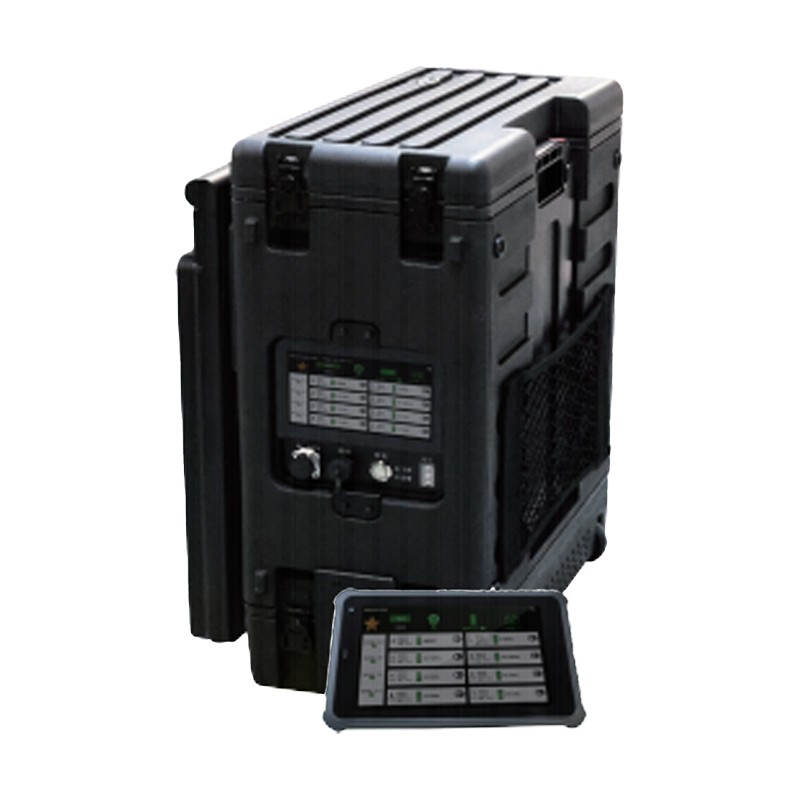

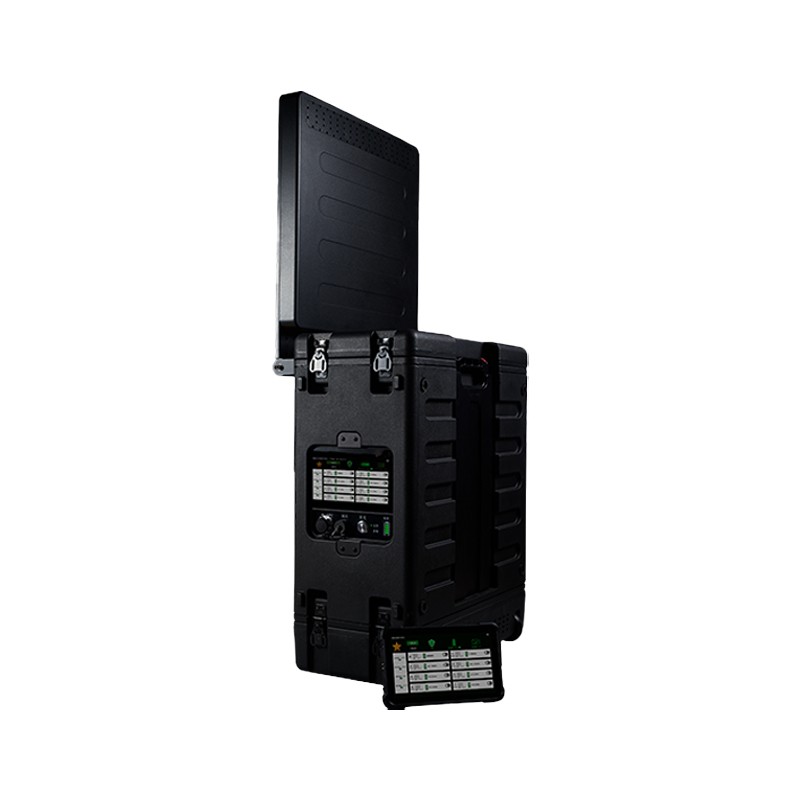

VT-502 Portable SDR Frequency Jammer

Product Description

Key Features:

· Full-Standard Signal Jamming: Covers remote-controlled devices (such as drones and unmanned vehicles), digital two-way radios, 2G/3G/4G/5G mobile phones (including the 700MHz frequency band, 2.6GHz, 3.5GHz, 4.8GHz, and 4.9GHz bands of the National Broadcasting Administration), Bluetooth, and 2.4GHz/5.8GHz Wi-Fi signals.

· Full-Band Seamless Coverage: Provides seamless coverage across the 8MHz to 6500MHz frequency range.

· Long Battery Life: The built-in lithium battery supports at least 70 minutes of continuous operation.

· Integrated Antenna Design: Easy to carry and operate, suitable for single-person use.

· High Maintainability: Supports software upgrades without hardware replacement and features remote upgrade capabilities to quickly adapt to new 5G frequency band interference requirements.

· SDR Architecture Design: Uses a Software Defined Radio (SDR) architecture that can efficiently interfere with the physical layer characteristics and modulation methods of different signals.

· Modular Design: Has standardized interfaces supporting plug-and-play RF modules, with a maximum configuration of up to 8 independent service modules and 15 RF channels.

Technical Specifications

Jamming Mode	SDR (Software Defined Radio)
Jamming Range	8 MHz to 6,500 MHz
Output Power	≤ 350 W
RF Module Count	≤ 8
RF Channel Count	≤ 21
Antenna Type	Omnidirectional
Antenna Module	1
Power Supply	AC 220 V external power supply, built-in lithium battery pack with seamless switching; pure battery runtime ≥ 70 minutes
Total Power Consumption	1,200 W
Jamming Distance	Wireless Mobile Communications: ≥ 40 meters (Environmental background strength RSRP: -90 dBm) Drone Remote Control and Navigation Interference: ≥ 500 meters Walkie-Talkie Interference: ≥ 40 meters (Civilian walkie-talkie, transmission power: 3 W) Unmanned Vehicle and Remote Control Interference: ≥ 40 meters
Overall Dimensions	570 mm × 343 mm × 697 mm
Overall Weight	< 45 kg
Protection Level	IP42
Operating Temperature	-20°C to 45°C
Storage Temperature	-30°C to 55°C
