VK-8200: Portable Six-channel Dust Particle Detection for Environmental Monitoring

VK-8200: Portable Six-channel Dust Particle Detection for Environmental Monitoring

The VK-8200 dust particle counter is a high-precision environmental monitoring instrument used to detect particulate matter concentration in the air. This product line is suitable for multiple scenarios, enabling users to monitor air quality in real-time and meet cleanliness requirements across different industries.

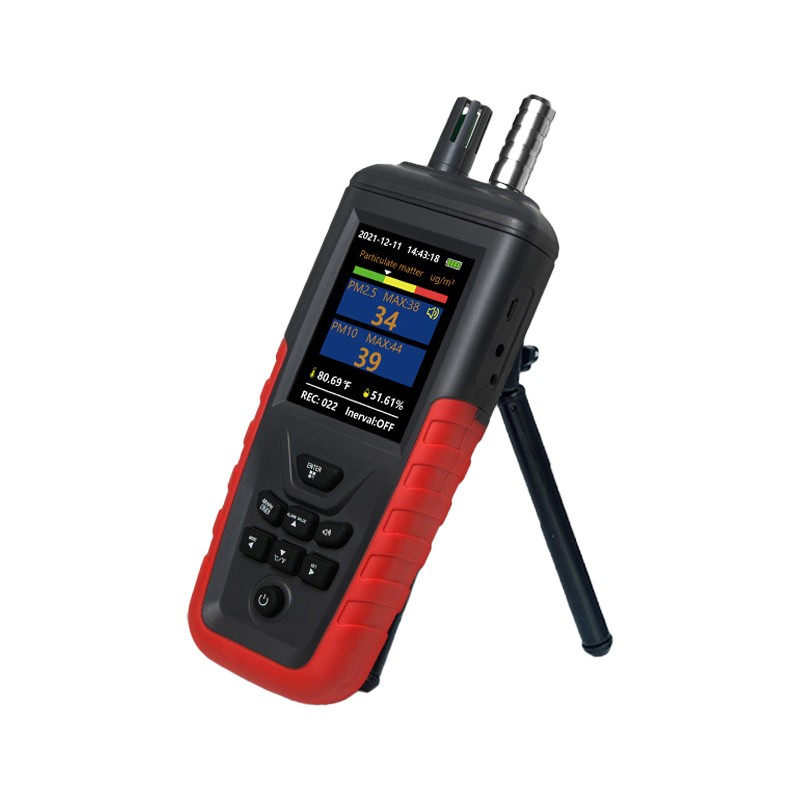

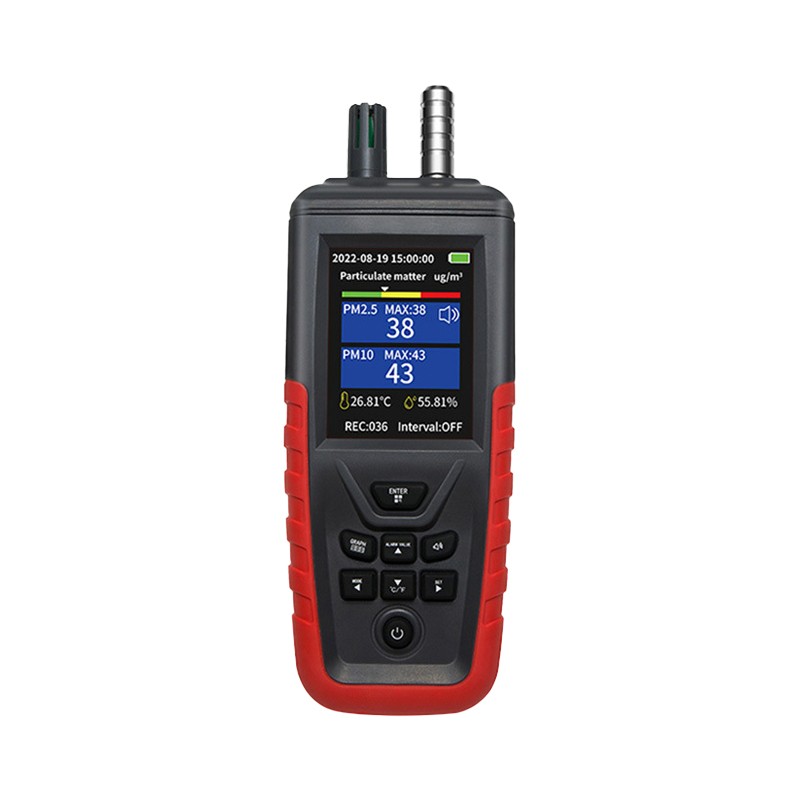

Dust Particle Counter VK-8200

Product Overview

Application Areas Dust particle counters are widely used in provincial and municipal pharmaceutical inspection institutes, blood centers, epidemic prevention stations, disease control centers, quality supervision institutes, and other authoritative institutions, as well as in the electronics industry, pharmaceutical manufacturing areas, semiconductors, optical or precision mechanical processing, plastics, spray painting, hospitals, environmental protection, testing institutes, and other manufacturing enterprises and research departments.

Main Features

· Six-channel particle detection: Suitable for particle detection in cleanroom environments.

· Concentration gravimetric detection: Capable of performing precise particulate concentration measurements.

· 3.2-inch TFT color screen: Provides clear and intuitive data display.

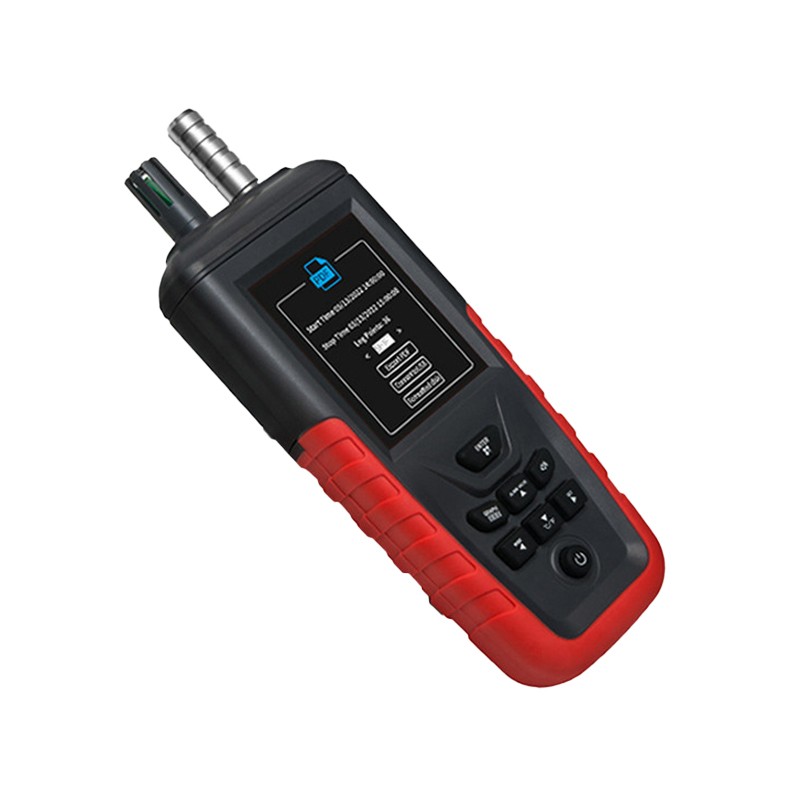

· Automatic generation of PDF document data: Facilitates data management and report creation.

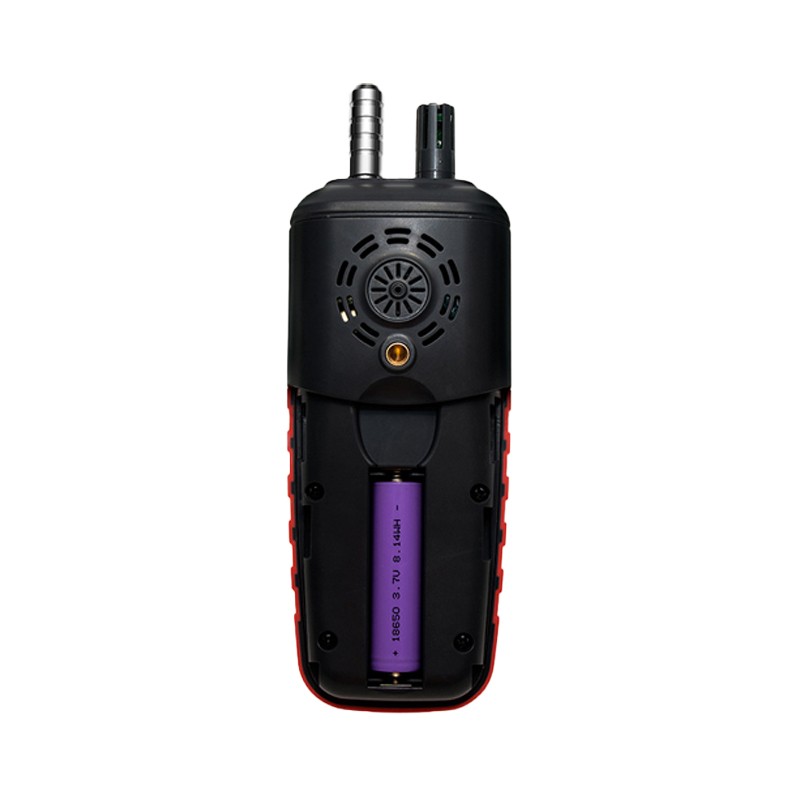

· Replaceable 18650 battery: Ensures long usage time and easy replacement.

· Temperature and humidity extension for external detection: Simultaneously monitors environmental temperature and humidity conditions.

· Individual hardware sampling port: Ensures accurate and convenient sampling.

Technical Specifications

Model	VK-8200	VK-8200A
Particle Size (Six Channels)	0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Particle Count Detection Range	2,000,000 particles/L
PM2.5/PM10 Concentration Range	0-1,000 μg/m³
PM2.5/PM10 Accuracy	0-100 μg/m³ ±10; 100-1,000 μg/m³ ±10%
Concentration Resolution	1 μg/m³
Sampling Flow Rate	1 L/min	2.83 L/min
Cleanliness Standard	ISO 14644-1: ISO5-ISO9
Response Time	1 s
Stabilization Time	30 s
Temperature Measurement Range	-10°C to 60°C
Temperature Accuracy	±2°C
Temperature Resolution	0.01°C
Humidity Measurement Range	0% to 100%
Humidity Accuracy	±3%
Humidity Resolution	0.01%
Power Supply	3.7V / 2200mAh Lithium-ion Battery (18650, removable)
Screen Size	3.2-inch TFT Color Screen
Continuous Operating Time	>8 hours	>5 hours
Charging Time	2-3 hours
Data Recordings	999 sets
Data Document	View on device or PC as PDF document
Net Weight	320 g	390 g
Product Dimensions	222 x 80 x 46 mm
Packaging Dimensions	270 x 220 x 80 mm
Packaging Weight	780 g	850 g
