VK-8100: High-Precision PM2.5 & PM10 Detection for Environmental Monitoring

VK-8100: High-Precision PM2.5 & PM10 Detection for Environmental Monitoring

The VK-8100 is a high-performance dust particle counter designed specifically for environmental monitoring needs. It accurately measures different sizes of dust particles and provides real-time PM2.5 and PM10 concentration data. The device utilizes advanced sensor technology and an intuitive user interface, making it suitable for air quality and pollution control applications in various industries.
The VK-8100 dust particle counter, with its precise measurement capability, efficient data processing, and user-friendly operation, is an ideal tool for dust particle detection in laboratory and industrial environments.

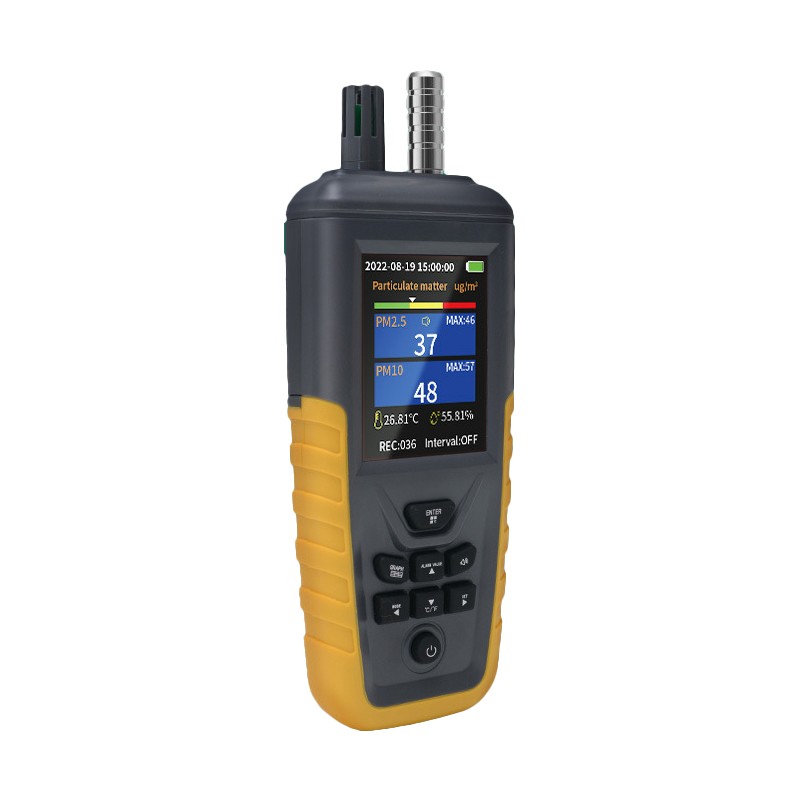

VK-8100 Dust Particle Counter

Product Overview

The VK-8100 dust particle counter, with its precise measurement capability, efficient data processing, and user-friendly operation, is an ideal tool for dust particle detection in laboratory and industrial environments.

Application Areas

The VK-8100 is widely used in the following areas:

· Pharmaceutical inspection institutes

· Blood centers

· Disease prevention stations

· Disease control centers

· Quality supervision institutes

· Electronics industry

· Pharmaceutical manufacturing facilities

· Semiconductor industry

· Optical and precision mechanical processing

· Plastics industry

· Paint spraying

· Hospitals

· Environmental protection and testing institutes

Key Features

· Three-Channel Particle Detection: Simultaneously measures particles of 0.3μm, 2.5μm, and 10μm in diameter.

· High-Precision Concentration Measurement: Precision of ±12 μg/m³ in the range of 0-100 μg/m³; precision of ±10% in the range of 100-1000 μg/m³.

· Fast Response and Stabilization Time: Response time of 1 second and stabilization time of just 30 seconds.

· Comprehensive Environmental Parameter Monitoring: In addition to particle concentration, also measures temperature and humidity.

· Portable Design: Lightweight and compact with a 3.2-inch TFT color screen, easy to carry.

· Long Battery Life: Equipped with a 3.7V/2200mAh lithium battery, supports continuous operation for over 8 hours.

· Data Recording Function: Can store 999 sets of data and supports viewing on-device or via PDF on a computer.

Technical Specifications

Model	VK-8100
Particle Size (3 Channels)	0.3 μm, 2.5 μm, 10 μm
Particle Count Range	2,000,000 particles per liter
PM2.5 / PM10 Concentration Range	0-1,000 μg/m³
Concentration Accuracy	0-100 μg/m³ ± 12 μg/m³, 100-1,000 μg/m³ ± 10%
Concentration Resolution	1 μg/m³
Sampling Flow Rate	1 L/min
Response Time	1 second
Stabilization Time	30 seconds
Temperature Measurement Range	-10 to 60 °C
Temperature Accuracy	±2 °C
Temperature Resolution	0.01 °C
Humidity Measurement Range	0 to 100%
Humidity Accuracy	±3%
Humidity Resolution	0.01%
Power Supply	3.7V / 2,200 mAh lithium battery (18650, removable)
Screen Size	3.2-inch TFT color screen
Continuous Operation Duration	>8 hours
Charging Time	2-3 hours
Data Recordings	999 groups
Data Document	Viewable on-device or via PDF on a computer
Net Weight	320 g
Product Dimensions	222 × 80 × 46 mm
Packaging Dimensions	270 × 220 × 80 mm
Packaging Weight	780 g
