TCS-DSH-BS

The Optic Sorting System is a device for automatically sorting out the defective material by using the optoelectronic detecting technology according to the difference of the optical characteristics of the materials.

EMAIL

Optical Sorting System

The optic sorting machine is a device for automate sorting out the defective material by using the optoelectronic detecting

technology according to the difference of the optical characteristics of the materials.

optic color sorting machines generally consist of 4 principle systems plus a user interface.


Feed system

Inspection system

signal processing

separation system

user Interface (GUI)


Depending on the types of sensors used and the software-driven intelligence of the image processing system , optic sorters can recognize objects' color, size and shape and are able to compare objects to user-defined accept/reject criteria to identify

and remove defective products and foreign material (FM) from the production line , or to separate product of different grades or types of materials.


Features and Advantages

1. High resolution full color and state of the art CCD ensures enhanced sorting accuracy and is optimal for sorting of grain crops, beans, pulses, spices, nuts, ice, veg ,fruits , etc. as well as non-food products such as plastics, minerals.

2. LED and broad spectrum lighting ensures ultra-clear imaging and consistent high performance.

3. High precision election system minimizes false rejects of good grains , delivering a very highly-concentrated reject stream.

4. professional high speed FPGA, sustain the most advanced algorithm.

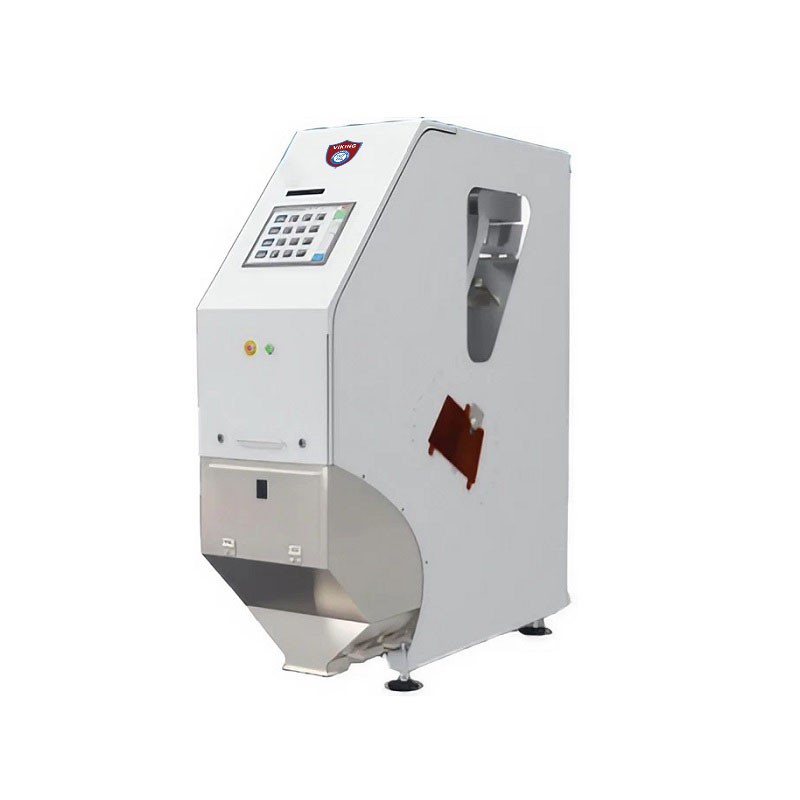

Mini Full color sorter


●The mini sorter is tailor-made for small seeds processors, coffee roasters, Scientific research institutes, universities, labs, etc.

●It has small for print and is mobile! With the combination of color & shape sorting, it is able to recognize shells, split and broken commodities.

Mini Full-color sorter

Product Specifications


Model

Channel Number

Total Power

Voltage

Air Pressure

Air Consumption

Dimension(L*D*H)

(mm)

Weight

TCS-DSH-BS

1x32

0.6 kW

180~240V 50Hz

0.6 to 0.8MPa

0.8m³/min

450x1250x1450

315 kg

Note:

1.This parameter takes peanuts as an example (the impurity content is 2%), and the above parameter indicators may vary due to different materials and impurity content.

2.If the product is updated without notice, the actual machine shall prevail.

Applications
