TCS-1200S

Optical Sorting System

The optic sorting machine is a device for automate sorting out the defective material by using the optoelectronic detecting

technology according to the difference of the optical characteristics of the materials.

optic color sorting machines generally consist of 4 principle systems plus a user interface.

●Feed system

●Inspection system

●signal processing

●separation system

●user Interface (GUI)

Depending on the types of sensors used and the software-driven intelligence of the image processing system , optic sorters can recognize objects' color, size and shape and are able to compare objects to user-defined accept/reject criteria to identify

and remove defective products and foreign material (FM) from the production line , or to separate product of different grades or types of materials.

Features and Advantages

1. High resolution full color and state of the art CCD ensures enhanced sorting accuracy and is optimal for sorting of grain crops, beans, pulses, spices, nuts, ice, veg ,fruits , etc. as well as non-food products such as plastics, minerals.

2. LED and broad spectrum lighting ensures ultra-clear imaging and consistent high performance.

3. High precision election system minimizes false rejects of good grains , delivering a very highly-concentrated reject stream.

4. professional high speed FPGA, sustain the most advanced algorithm.

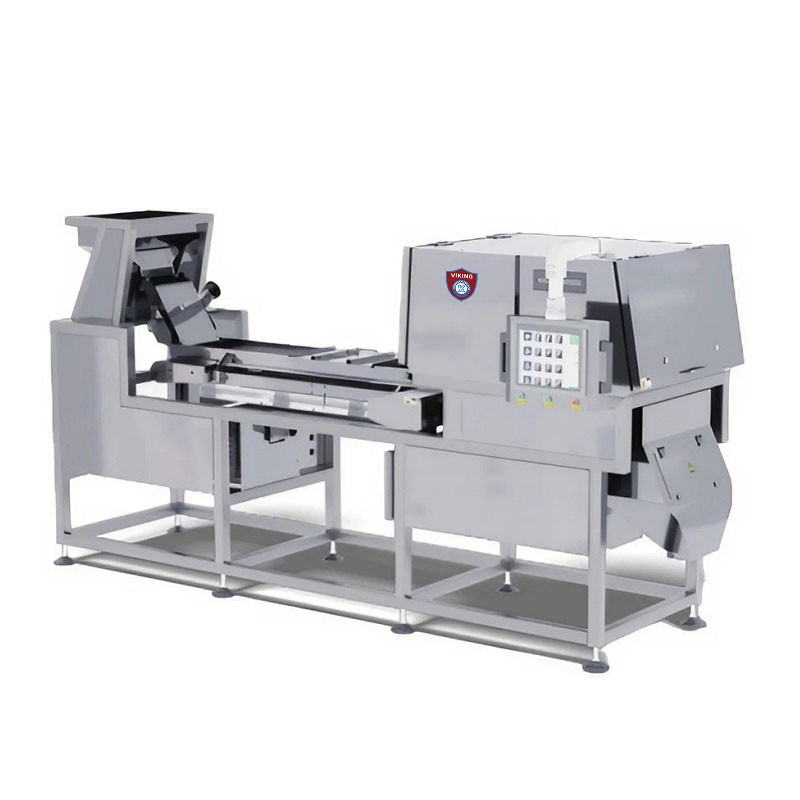

Full Color Belt Sorter

The TCS Belt sorter is exquisite in structure and flexible in configuration. it is available from 300mm width belt to 1200 mm width belt Besides. single layer or double layers, carbon steel machine body or stainless steels machine body is optional.

Product Specifications

Note:

1.This parameter takes peanuts as an example (the impurity content is 2%), and the above parameter indicators may vary due to different materials and impurity content.

2.If the product is updated without notice, the actual machine shall prevail.

Applications
