IMD-5030

The first DSP metal detector with Intellectual Property Rights in China, suitable for metal contaminants detection in various industries like: aquatic products, meat & poultry, salted roducts, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys, etc.

Metal Detector IMD Series

Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferous metals (copper, Aluminum etc.) and stainless steel.

Product Features

Stable and High Sensitivity

●Special phase adjusting technology

●High sensitivity with stable perf rmance

●Auto balance function

IMD 5030

High Configuration

●Touch screen

●USB Port

●Dual-frequency

●Customized re ecter system

●Different surface treatment

IMD 5030

User-friendly Function

●Multi languages

●Customization

●Large memory capacity

IMD 5030

Auto-learning Function

●Auto-learning product character

●Finish auto-learning process very soon

IMD 5030

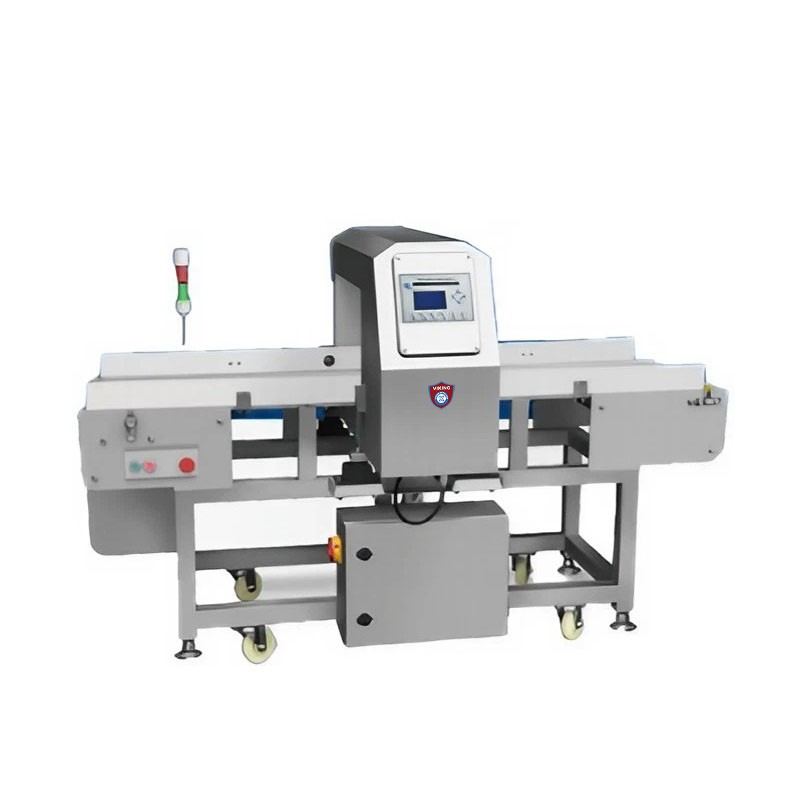

Conveyor Belt Metal Detector

Product Specifications

Model		IMD
Specifications		4008 ,4012 4015, 4018	5020 ,5025 5030; 5035	6025, 6030
Detection Width		400mm	500mm	600mm
Detection Height		80mm, 120mm 150 mm, 180mm	200mm, 25 0mm 300mm, 350 mm	250mm 300mm
Sensitivity	Fe	Φ0.5mm , Φ0.6mm Φ0.7mm , Φ0.8mm	Φ0.8mm, Φ1.0mm. Φ1.2mm, Φ1.5mm	Φ1.2mm Φ1.5mm
	SUS304	Φ1.0mm, Φ1.2mm Φ1.5mm, Φ2.0 mm	Φ2.0mm, Φ2. 5mm Φ2.5mm, Φ3.0 mm	Φ2.5mm Φ3.0mm
Belt Width		360mm	460mm	560mm
Loading Capacity		5kg to 10kg	20kg to 50kg	25kg to 100kg
Display Mode		LCD display panel (FDM touch screen optional)
Operation Mode		Button input (Touch input optional)
Product Storage Quantity		52 kinds (100 kinds with touch screen)
Conveyor Belt		Food Grade PU (chain conveyor optional)
Belt Speed		Fixed 25m/min (variable speed optional)
Rejecter Mode		Alarm and belt stop (Rejecter optional)
Power Supply		AC220v (optional)
Main Material		SUS304
Surface Treatment		Brushed SUS, Mirror polished, sand blasted

Note:

1.The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The concrete sensitivity would be affected according to the products being detected working condition and speed.

2. Requirements for different sizes by customers can be fulfilled.
