IMD 6030

The first DSP metal detector with Intellectual Property Rights in China, suitable for metal contaminants detection in various industries like: aquatic products, meat & poultry, salted roducts, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys, etc.

Metal Detector IMD Series

Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferous metals (copper, Aluminum etc.) and stainless steel.

EMAIL

Product Features

Stable and High Sensitivity

Special phase adjusting technology

High sensitivity with stable perf rmance

Auto balance function

IMD 5030


High Configuration

Touch screen

USB Port

Dual-frequency

Customized re ecter system

Different surface treatment

IMD 5030

IMD 5030

IMD 5030



User-friendly Function

Multi languages

Customization

Large memory capacity

IMD 5030

IMD 5030



Auto-learning Function

Auto-learning product character

Finish auto-learning process very soon

IMD 5030

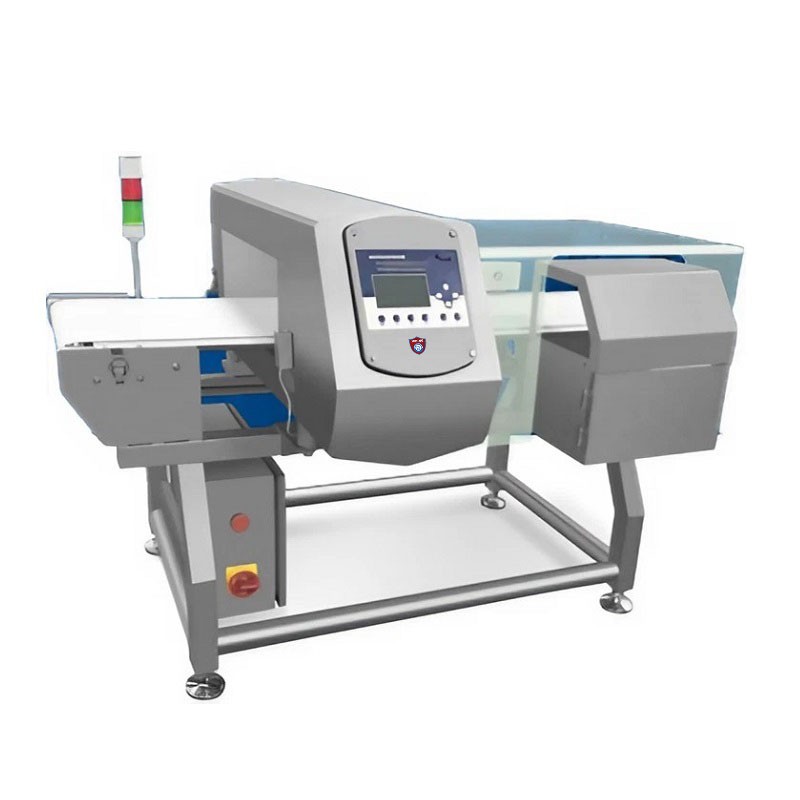

High configuration Conveyor Belt Metal Detector


●Frequency-selecting function two frequencies can be chosen to match different products

●Dual-detection system ensures Fe and sus achieve its best sensitivity

●Auto-balance function ensures stable detection


High configuration Conveyor Belt


Product Specifications


Model

IMD

Specifications

4008 ,4012

4015, 4018

5020 ,5025

5030; 5035

6025, 6030

Detection Width

400mm

500mm

600mm

Detection Height

80mm, 120mm

150 mm, 180mm

200mm, 250mm

300mm, 350 mm

250mm

300mm

Sensitivity

Fe

Φ0.5mm , Φ0.6mm

Φ0.7mm , Φ0.8mm

Φ0.8mm, Φ1.omm.

Φ1.2mm, Φ1.5mm

Φ1.2mm

Φ1.5mm


SUS304

Φ0.9mm, Φ1.2mm

Φ1.5mm, Φ2.0 mm

Φ2.0mm, Φ2. 5mm

Φ2.5mm, Φ3.0 mm

Φ2.5mm

Φ3.0mm

Belt Width

360mm

460mm

560mm

Loading Capacity

=10kg

50kg

100kg

Display Mode

Touch screen

Operation Mode

Touch input

Product Storage Quantity

100 kinds

Frequency

Dual-frequency

Checking Channel

Double channel checking

Belt Speed

variable speed

Rejecter Mode

Alarm and belt stop (Rejecter optional)

IP Level

IP54/IP65

Mechanical Design

Round frame, easy wash

 Surface Treatment

Brushed stainless steel, sand blasted

Note:

1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The concrete sensitivity would be affected according to the products being detected, working condition and speed.

2. Requirements for different sizes by customers can be fulfilled.


Product Configuration

IMD 5030
