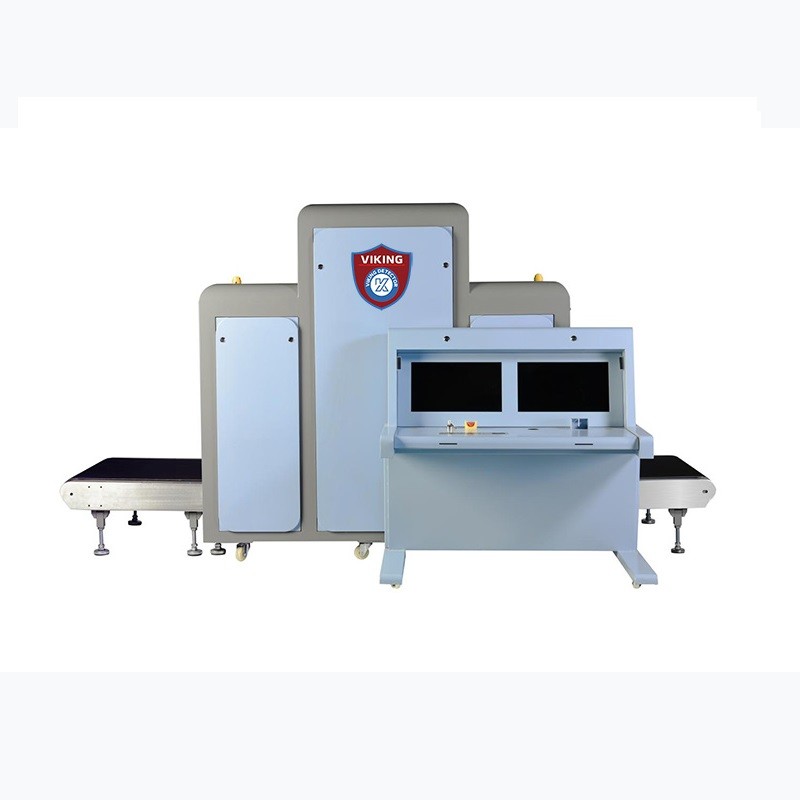

X-ray security inspection scanning equipment VMS-10080

The VMS-10080 medium-sized tunnel X-ray machine has passed the certification of the Ministry of Public Security, with international leading performance parameters, capable of penetrating 43mm steel plates and achieving a line resolution of 0.0787mm for a single solid copper wire (40AWG). It features one-key power on/off, energy-saving and environmental protection. With advanced material recognition capabilities, it can distinguish between organic, inorganic, and mixed materials based on the effective atomic number of the detected objects, assigning different colors to aid operators in image identification and judgment.
Widely used in important departments of public security, armed police, courts, prisons, subways, customs stations, ports, logistics, hotels, schools, factories, and other public places.
Mainly used to detect hidden prohibited items and flammable and explosive substances in medium and small-sized goods, packages, mail, and luggage, such as controlled knives, firearms, fireworks, alcohol, ethanol, gasoline, and sulfuric acid.

EMAIL

X-ray security inspection equipment machine



Performance Features

· Clear image with a line resolution of 0.0787mm (40AWG), and a penetration power of 43mm steel plate.

· Equipped with a 19.5-inch 1920*1080 high-resolution LCD display, paired with 65536 grayscale imaging, resulting in clearer image effects.

· Dual display design for color and black and white images, allowing for more intuitive differentiation of internal components of the image.

· Extremely low radiation leakage dose rate, with the device's peripheral radiation dose rate close to the natural background level, meeting international and domestic health and safety standards.

· Color/Black and white image switching, organic highlight, and inorganic highlight, facilitating the distinction of object types.

· Multiple image processing functions such as super enhancement, local enhancement, high penetration, low penetration, brightening, darkening, gray sweep, mirror, zoom in, and zoom out, further increasing image clarity, and the ability to restore the initial image display with one click.

· Provides automatic sensing functionality, convenient for operators to use, green and energy-saving, extending the service life of the equipment.

· Quick emergency stop: The device can be stopped at any time using software or hardware in response to various emergencies.

· Provides a dangerous goods image insertion function (TIP function), facilitating the training and assessment of operators' image recognition abilities.

· Designed according to ergonomic principles, the dedicated keyboard, image display, and human-computer interaction interface effectively improve the ease of use of the equipment.

· Remote control console specifically designed for anti-explosion screens; the flip-top folding design prevents unauthorized operation during non-working hours and protects against external forces damaging the screen.

· Supports image saving functions, capable of saving to USB storage devices, and supports ".bmp", ".jpg", ".gif", ".png" image formats.

· Modular design, with each module handling different tasks, facilitating fault detection and maintenance.

· The noise level at any point on the outer surface of the device is less than 54dB(A).

· Various hardware options available: automatic sensing, surveillance cameras, LED advertising screens, GPS positioning, etc.


Technical Specifications

General Specifications

Channel dimensions

1000mm(W)*800mm(H)

Conveyor belt speed

0.22m/s

Maximum load

200kg

Line resolution

40AWG(0.0787mm)

Penetration resolution

36AWG(0.127mm)

Spatial resolution

Horizontal 1.0, Vertical 1.0

Penetration power

43mm steel plate

Display

19.5-inch high-resolution display; resolution 1920*1080

X-ray Generator

Tube voltage

160KV

Tube current

1mA

Beam emission angle

80°


Image Processing System

Image enhancement functions

Color/gray, organic rejection, inorganic rejection, super enhancement, local enhancement, high penetration, low penetration, brightness increase, darkness decrease, gray sweep, reverse color

Image Zoom and Local Zoom


Image zoom and shrinkage (1~96 times arbitrary zoom); supports local zoom function (Magic Mirror)

Image pullback forward

Any image of the passed package can be viewed


Safety and Environmental Design

Single check dose

≦0.89μSv/h

Radiation leakage dose rate

≦0.1μSv/h

Environmental design

Double-layer 0.35mm lead equivalent, with a protective film on the lead curtain to avoid lead pollution and extend service life

Film safety

Safe for ISO 1600 film


System Functions

Date/time display, luggage count, user management, system working time, beam emission warning, automatic calibration upon startup, image storage and retrieval, quick emergency stop, working status display, emergency stop/micro-motion/optical trigger prompt


Optional Functions

Automatic sensing function, Dangerous Goods Image Insertion (TIP function), GPS function


Installation Data

Overall dimensions (including receiving rack)

4278mm(L)*1333mm(W)*1790mm(H)

Cooling working cycle

Sealed oil cooling/100%

Operating voltage

220VAC(±10%) 50/60Hz

Power consumption

<1kw
